The following tolerances apply to the drawings in the "Mechanical specifications" chapter: •Length and angles: ISO 2768-f •Shape and position: ISO 2768-H |

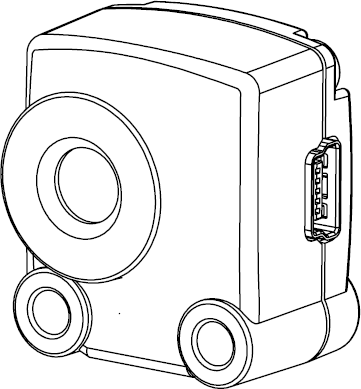

 Fig. 558: USB uEye XS |
 |
Lens mount |
Enclosure IP code |
Weight |
|---|---|---|
- (integrated) |
IP 30 |
12 g |
 |
NOTICE! The camera connectors may be damaged if you install or remove the camera with plugged in cables. Therefore, first unplug the USB and/or I/O cable from the camera. |
|
The housing of the USB uEye XS is made of a magnesium alloy (Mg-AZ91D). If you need to machine or work on the housing in any way, please strictly comply with the applicable safety and fire protection regulations for this material. |
Housing dimensions

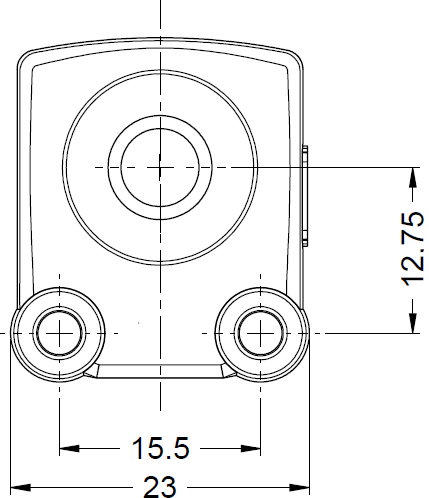

 Fig. 559: USB uEye XS - front view |

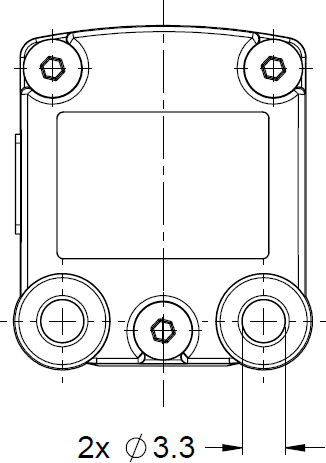

 Fig. 560: USB uEye XS - rear view |

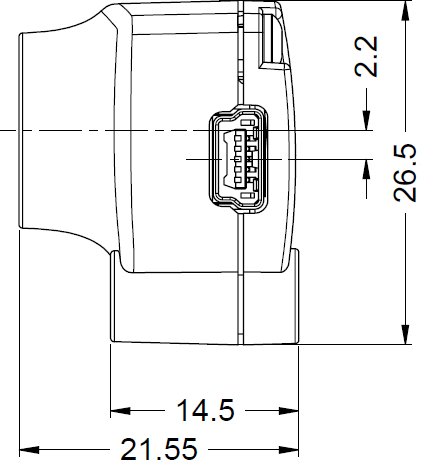

 Fig. 561: USB uEye XS - side view |

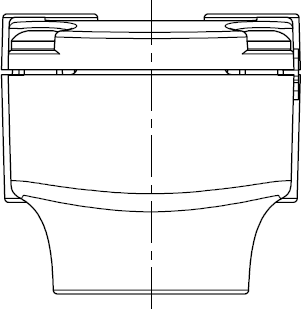

 Fig. 562: USB uEye XS - top view |
