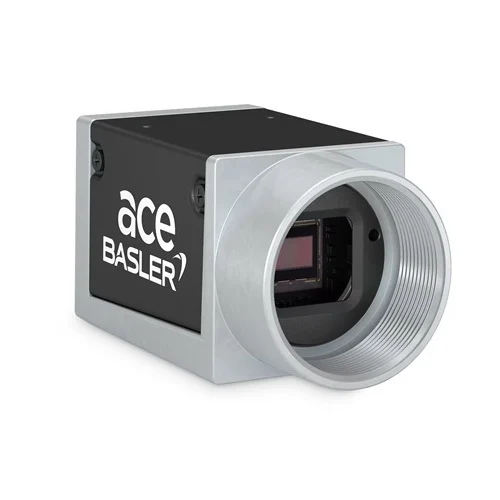

Basler acA1300-60gc GigE Color Area Scan Camera

Technical Overview

Compact GigE color camera with 1.3 MP resolution, 60 fps, global shutter, and PoE for versatile industrial machine vision applications.

Key Features

1.3 MP resolution (1280 x 1024 pixels) at 60 frames per second.
e2v EV76C560 CMOS sensor with Global and Rolling Shutter.
GigE Vision compliant interface for easy integration into machine vision systems.
Ultra-small form factor (42 x 29 x 29mm) enables integration into confined spaces.
Includes Basler Pylon SDK Software and Driver.
Programmable exposure control and auto functions for optimal image settings.
Supports hardware trigger, software trigger, and free-run synchronization modes.
Conforms to CE, FCC, EAC, UL, RoHS, KC, UKCA, and IP30 standards.

Technical Specification Matrix

Parameter	Value
Resolution (H x V Pixels)	1280 x 1024
Resolution (Megapixels)	1.3 MP
Frame Rate (fps)	60
Sensor Type	e2v EV76C560 CMOS, Progressive Scan, Color
Shutter Type	Global and Rolling Shutter
Sensor Format	1/1.8"
Pixel Size (H x V)	5.3 x 5.3 µm
Interface	GigE (PoE)
Power Supply	PoE or 12 VDC
Power Consumption (typical, 12VDC)	2 W
Power Consumption (typical, PoE)	2.6 W
Operating Temperature	0 to +50 °C
Lens Mount	C-Mount
IP Rating	IP30
Digital Input	1
Digital Output	1

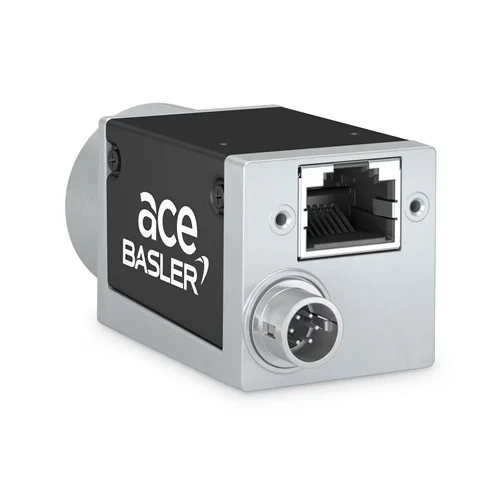

I/O Connector Type	Hirose HR10A 6-pin plug
Synchronization	Hardware Trigger (GPIO), Software Trigger, Free-Run
Physical Weight (kg)	0.09
Dimensions L x W x H (cm)	4.2 x 2.9 x 2.9

Industrial Applications

1. High-Speed Quality Control in Manufacturing

This camera is ideally suited for automated quality control systems on production lines, where objects move rapidly. Its 1.3 MP resolution at 60 fps, combined with a global shutter, ensures clear, distortion-free images of fast-moving parts, enabling accurate defect detection and measurement.

Problem Solved

Eliminates motion blur and ensures precise inspection of rapidly moving components, improving throughput and product quality.

Global Shutter60 fps1.3 MPGigE (PoE)Automated Optical Inspection

2. Automated Inspection of Electronic Components

With its compact dimensions (42x29x29mm) and 1.3 MP resolution, the camera can be integrated into tight spaces to inspect small electronic components for solder joint quality, component placement accuracy, or surface defects. The IP30 rating offers basic protection in industrial environments.

Problem Solved

Provides high-resolution imaging for detailed inspection of small-scale components in confined spaces, enhancing reliability and reducing manual inspection errors.

Compact Size1.3 MPIP30Electronic Assembly InspectionDefect Detection

3. Robotics and Pick-and-Place Systems

The acA1300-60gc is well-suited for vision-guided robotics applications, such as pick-and-place. The 60 fps frame rate provides real-time visual feedback for robotic manipulators, while the GigE (PoE) interface simplifies connectivity and reduces cabling complexity on robotic arms or cells.

Problem Solved

Enables precise real-time robot guidance and object localization by providing high-speed, accurate visual data with simplified power and data cabling.

60 fpsGigE (PoE)RoboticsMachine VisionReal-time Feedback
