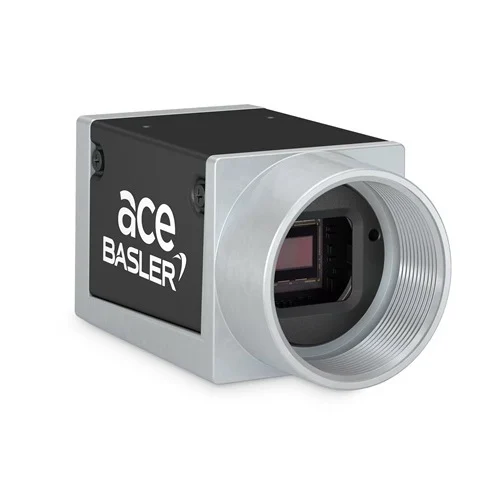

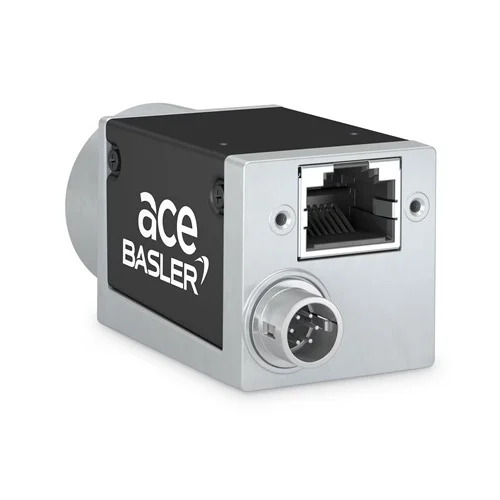

Basler acA1440-73gm 1.6 MP Monochrome GigE Camera

Technical Overview

1.6 MP monochrome GigE camera with Sony IMX273 global shutter sensor, 73 fps, and PoE. Compact 42x29x29 mm size.

Key Features

1.6 MP resolution (1440 x 1080 pixels) at 73 frames per second.
Equipped with Sony IMX273 CMOS sensor with Global Shutter technology.
Gigabit Ethernet (GigE) interface for reliable data transfer over long cables.
Compact housing dimensions of 42 mm x 29 mm x 29 mm (L x W x H).
Features 1 opto-coupled input, 1 opto-coupled output, and 1 General Purpose I/O (GPIO) line.
C-mount lens mount for a wide range of compatible lenses.
Compliant with GigE Vision and GenICam machine vision standards.
Includes Basler Pylon SDK Software and Driver for efficient system integration.

Technical Specification Matrix

Parameter	Value
Resolution (H x V Pixels)	1440 x 1080 (default), 1456 x 1088 (full)
Resolution (Megapixels)	1.6 MP
Sensor Type	Sony IMX273LLR-C Progressive Scan CMOS Global Shutter
Sensor Size (optical)	1/2.9"
Sensor Size (H x V)	5 mm x 3.7 mm
Pixel Size (H x V)	3.45 µm x 3.45 µm
Frame Rate	73 fps
Monochrome/Color	Monochrome
Interface	GigE (Gigabit Ethernet)
Power Requirements	PoE (IEEE 802.3af) or 12-24 VDC via I/O connector
Power Consumption (PoE)	≈3.2 W (typical)
Power Consumption (12-24 VDC)	≈2.9 W (typical)
Digital I/O	1 opto-coupled input, 1 opto-coupled output, 1 GPIO
Lens Mount	C-mount
Operating Temperature	0 °C to +50 °C
Conformity	CE (RoHS), EAC, UKCA, UL Listed, FCC Class B, GenICam, GigE Vision, IP30, IEEE 802.3af (PoE), REACH, KC
Pixel Bit Depth	10 / 12 bits
Machine Vision Standard	GigE Vision, GenICam
Physical Weight (kg)	0.09
Dimensions L x W x H (cm)	4.2 x 2.9 x 2.9

Industrial Applications

1. High-Speed Defect Detection in Manufacturing

The camera's 73 fps frame rate and global shutter technology enable precise imaging of rapidly moving items on an assembly line. The 1.6 MP monochrome sensor provides high-contrast images critical for identifying subtle defects or variations.

Problem Solved

Ensures consistent product quality by accurately detecting flaws on fast-moving production lines, reducing manual inspection time and errors.

Global Shutter73 fps1.6 MP MonochromeGigE VisionQuality Control

2. Robotic Pick-and-Place Systems

With its compact 42x29x29 mm size and Power over Ethernet (PoE) interface, this camera is perfectly suited for integration onto robotic arms. The global shutter captures clear images, enabling robots to accurately locate and manipulate objects without motion blur, while digital I/O allows synchronization with robot triggers.

Problem Solved

Provides reliable visual feedback for robotic systems, improving precision and speed in automated handling and assembly tasks in confined spaces.

Compact SizePoEGlobal ShutterDigital I/ORoboticsObject Localization

3. Automated Medical Sample Analysis

The 1.6 MP monochrome sensor and precise imaging capabilities make it suitable for capturing detailed images in laboratory environments, such as microscopy or automated slide scanning. Its robust IP30 rating and industrial interface (GigE) ensure reliability in continuous operation.

Problem Solved

Enables high-throughput, accurate digital analysis of biological or chemical samples, reducing human error and accelerating diagnostic processes in automated lab equipment.

1.6 MP ResolutionMonochromeGigE InterfaceIP30Laboratory AutomationMicroscopy
