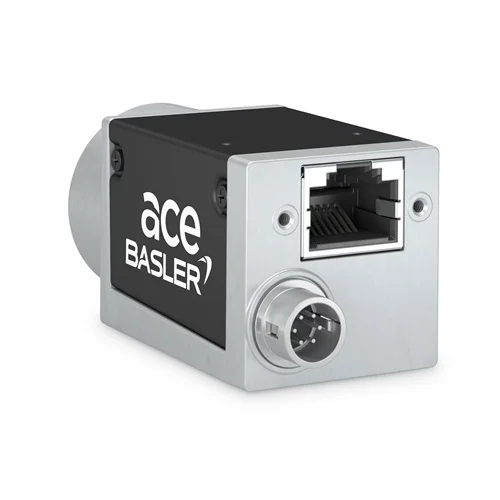

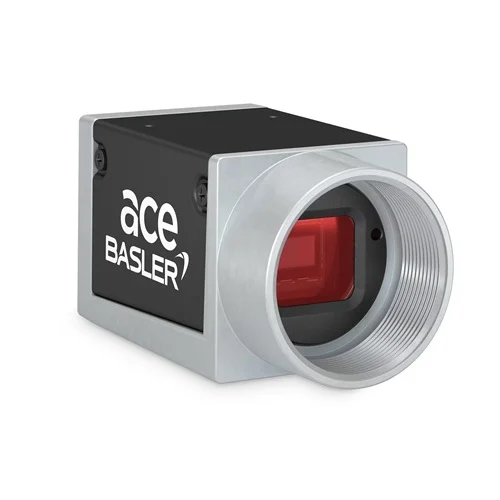

Basler acA2440-20gc 5MP GigE Color Camera

Technical Overview

5 MP GigE color camera with Sony IMX264 global shutter sensor, 23 fps, and PoE for demanding industrial applications.

Key Features

5 MP Resolution (2448 x 2048 pixels) for high-detail imaging.
Sony IMX264 CMOS Global Shutter sensor ensures distortion-free capture of fast-moving objects.
GigE interface for reliable, high-speed, and long-distance data transmission.
Flexible power supply via Power over Ethernet (PoE) or 12-24 VDC.
Compact housing measuring 42 x 29 x 29 mm for integration into tight spaces.
Lightweight design with a typical weight of 90 g.
C-Mount lens compatibility for a wide range of optical solutions.
Operating temperature range of 0 °C to 50 °C for diverse industrial environments.
Includes 1 Digital Input and 1 Digital Output for precise synchronization and control.
Compliant with GenICam and GigE Vision standards for broad compatibility.
Auto functions for exposure time, gain, and white balance for simplified setup.

Technical Specification Matrix

Parameter	Value
Resolution (H x V Pixels)	2448 x 2048 (5 MP)
Sensor Type	Sony IMX264 CMOS, Progressive scan, Global Shutter
Sensor Format	2/3"
Pixel Size (H x V)	3.45 µm x 3.45 µm
Frame Rate	23 fps
Interface	GigE (Gigabit Ethernet)
Power Supply	PoE (IEEE 802.3af) or 12-24 VDC
Power Consumption (typical)	2.8 W (12VDC) / 3.3 W (PoE)
Digital Input	1
Digital Output	1
Lens Mount	C-Mount
Operating Temperature	0 °C to 50 °C (housing temperature)
IP Rating	IP30
Conformity	CE (incl. RoHS), EAC, FCC, GenICam, GigE Vision, IP30, KC, RoHS, UKCA, UL
Physical Weight (kg)	0.09
Dimensions L x W x H (cm)	4.2 x 2.9 x 2.9

Industrial Applications

1. High-Speed Quality Control in Manufacturing

This camera is ideal for ensuring consistent product quality on fast-moving production lines. Its 5 MP resolution at 23 fps with a global shutter sensor (Sony IMX264) allows for capturing detailed, distortion-free images of rapidly moving objects.

Problem Solved

Accurately inspecting rapidly moving parts for defects, misalignments, or missing components to maintain product quality.

Machine VisionQuality ControlGlobal ShutterHigh ResolutionFast Frame RateGigEPoECompact Form Factor

2. Automated Assembly and Robotics Guidance

The camera's high resolution and global shutter provide the precise object detection and positioning capabilities required for robotic applications. The GigE interface ensures reliable data transfer, and digital I/O allows for synchronization with robotic movements.

Problem Solved

Providing accurate visual feedback for robotic arms to perform precise pick and place, assembly tasks, or guiding automated vehicles.

RoboticsAutomationObject RecognitionGlobal ShutterHigh PrecisionGigE VisionDigital I/OIndustrial Automation

3. Traffic Monitoring and ANPR (Automatic Number Plate Recognition)

The 5 MP resolution is sufficient for capturing clear images of vehicle license plates, and the 23 fps frame rate with global shutter minimizes motion blur from moving vehicles. The GigE interface enables remote data transmission to a central processing unit.

Problem Solved

Efficient and accurate identification of vehicles for traffic management, access control, or law enforcement by capturing clear license plate images under dynamic conditions.

Traffic MonitoringANPRGlobal ShutterHigh ResolutionExternal TriggerGigEOutdoor Application
