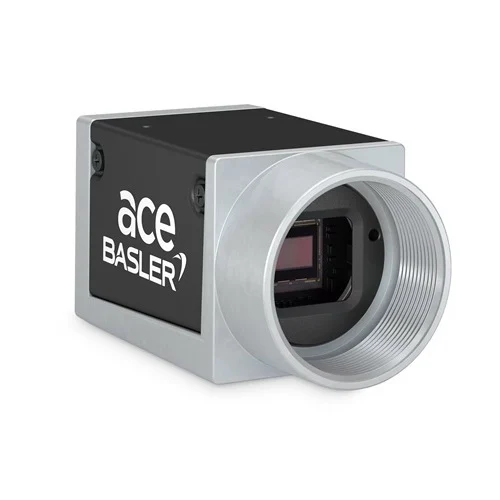

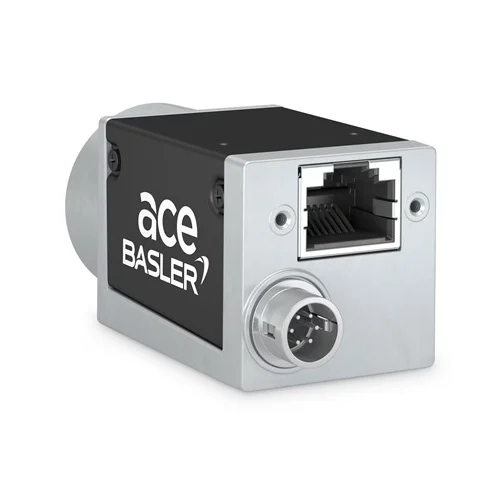

Basler acA2500-14gc 5 MP Color GigE Industrial Camera

Technical Overview

5 MP color GigE industrial camera, 14 fps, 42x29x29mm, PoE or 12 VDC power, IP30. Ideal for high-speed machine vision.

Key Features

5 Megapixel resolution (2592 x 1944 pixels)
14 frames per second at full resolution
GigE Vision interface with Power over Ethernet (PoE)
Compact housing: 42 x 29 x 29 mm (excludes connectors and lens mount)
ON Semi MT9P031 color CMOS sensor with rolling shutter
C-Mount lens compatibility
Includes Basler Pylon SDK software and driver
Opto-coupled I/O lines for hardware triggering and external control
Wide operating temperature range of 0 to +50 °C
IP30 rated housing

Technical Specification Matrix

Parameter	Value
Resolution (H x V)	2592 x 1944 pixels (5 MP)
Frame Rate	14 fps
Sensor Type	ON Semi MT9P031 Progressive Scan CMOS
Shutter Type	Rolling Shutter
Sensor Format	1/2.5"
Pixel Size (H x V)	2.2 x 2.2 µm
Interface	GigE (Gigabit Ethernet), GigE Vision
Lens Mount	C-Mount
Power Supply (PoE)	IEEE 802.3af compliant, 2.7 W
Power Supply (External)	12 VDC (10.8 VDC min, 13.2 VDC max), <1% ripple, 2.2 W
I/O Lines	1 opto-coupled input, 1 opto-coupled output
Operating Temperature	0 to +50 °C
IP Rating	IP30
Physical Weight (kg)	0.09
Dimensions L x W x H (cm)	4.2 x 2.9 x 2.9

Industrial Applications

1. High-Speed Quality Control on Production Lines

The Basler acA2500-14gc camera is suitable for high-speed quality control applications where precise inspection of rapidly moving objects is required. Its 5 MP resolution and 14 fps frame rate, combined with the GigE interface, allow for detailed image acquisition and rapid data transfer for automated defect detection.

Problem Solved

Rapidly identifies defects, missing components, or incorrect assembly on high-speed production lines, reducing manual inspection time and improving product quality. The compact size facilitates integration into existing machinery. Rolling shutter can be managed with synchronized illumination (strobe).

Machine VisionQuality InspectionAutomated Optical Inspection (AOI)High-Resolution ImagingGigE VisionPoERolling Shutter Compensation

2. Robotics and Automation for Pick-and-Place Operations

Due to its compact dimensions (42x29x29 mm) and light weight (<90g), this camera is an excellent fit for mounting on robotic arms in pick-and-place or assembly automation. The 5 MP resolution provides the necessary detail for accurate object localization and recognition, enabling precise manipulation by robots. The I/O lines can be used for synchronization with robotic movements.

Problem Solved

Provides accurate visual feedback for robotic systems to precisely locate, identify, and manipulate objects, improving the accuracy and efficiency of automated assembly and handling tasks, especially where space and payload are constrained.

Robotic VisionObject RecognitionPick-and-PlaceMachine GuidanceCompact CameraGigEI/O Synchronization

3. Industrial Metrology and Measurement Systems

The 5 MP resolution and small 2.2 µm pixel size of the acA2500-14gc make it ideal for industrial metrology applications requiring high-precision dimensional measurements and detailed surface inspection. Its C-mount lens compatibility allows for selection of various optics to achieve specific fields of view and magnifications, critical for accurate measurement tasks.

Problem Solved

Delivers highly accurate image data for automated measurement of parts, verifying critical dimensions, and detecting minute surface imperfections beyond human visual capabilities. The IP30 rating ensures suitability for controlled factory environments.

Industrial MetrologyDimensional MeasurementSurface InspectionQuality AssuranceC-MountHigh ResolutionMicro-inspection
