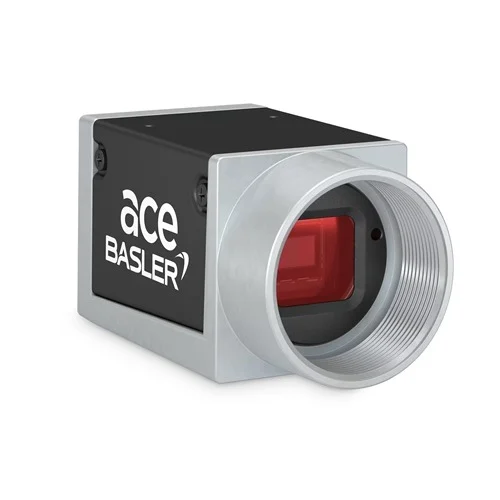

Basler ace acA1440-73gc Color GigE Camera

Technical Overview

Compact 1.6 MP color GigE camera with Sony IMX273 global shutter, 73 fps, and PoE for demanding industrial inspection.

Key Features

1.6 MP resolution (1440 x 1080 pixels) for detailed image acquisition.
High frame rate of 73 frames per second for capturing fast-moving objects.
Sony IMX273 Color CMOS sensor with global shutter for distortion-free images of moving targets.
GigE interface with Power over Ethernet (PoE) for robust and long-distance data and power transmission.
Compact housing with dimensions of 42 x 29 x 29 mm (excluding connectors and lens mount) for space-constrained applications.
C-Mount lens interface for compatibility with a wide range of industrial lenses.
Supports hardware trigger, software trigger, or free-run synchronization for versatile control options.
IP30 rating for protection against solid objects larger than 2.5 mm.
Operates within a temperature range of 0 °C to +50 °C, suitable for industrial environments.
Includes industry-proven Basler Pylon SDK Software and Driver for easy integration.

Technical Specification Matrix

Parameter	Value
Resolution (H x V)	1440 x 1080 pixels
Megapixels	1.6 MP
Frame Rate	73 fps
Sensor Type	Sony IMX273 Color CMOS
Shutter Type	Global Shutter
Sensor Format	1/2.9"
Pixel Size (H x V)	3.45 µm x 3.45 µm
Interface	GigE (Gigabit Ethernet) with PoE
Lens Mount	C-Mount
Power Supply	PoE (IEEE 802.3af) or 12-24 VDC
Typical Power Consumption	2.9 W (12-24 VDC), 3.2 W (PoE)
Operating Temperature	0 to +50 °C
IP Rating	IP30
Pixel Bit Depth	10 bits; 12 bits
Synchronization	Hardware Trigger (GPIO), Software Trigger, Free-Run

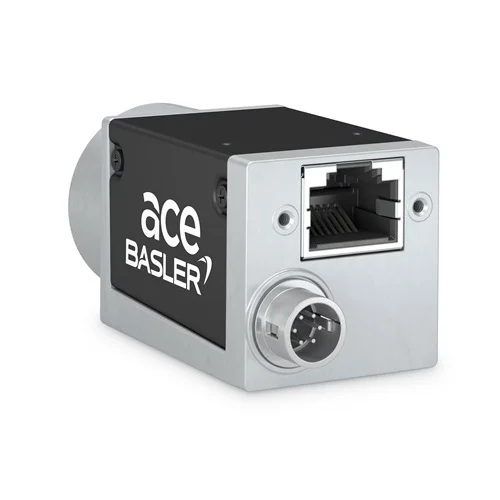

GPIO Connector Type	6-pin Hirose (HR10)
Physical Weight (kg)	0.09
Dimensions L x W x H (cm)	4.2 x 2.9 x 2.9

Industrial Applications

1. High-Speed Assembly Verification

This camera is ideal for quality control in automated assembly lines where components move rapidly. Its 73 fps frame rate and global shutter eliminate motion blur, allowing for precise inspection of parts as they are assembled, ensuring correct placement and defect detection.

Problem Solved

Ensures high-speed, accurate verification of component assembly without motion artifacts, reducing production errors and improving throughput.

High-speed inspectionGlobal shutterMotion blur reductionAutomated assemblyQuality control

2. Automated Pharmaceutical Packaging Inspection

Given its 1.6 MP resolution and color imaging capability, the acA1440-73gc can accurately inspect labels, lot codes, and product integrity on pharmaceutical packaging. The compact size (42 x 29 x 29 mm) allows for integration into existing packaging machinery, and the IP30 rating offers protection in a controlled industrial environment.

Problem Solved

Provides detailed visual inspection for pharmaceutical packaging, identifying misprints, damage, or incorrect product configurations at high line speeds, ensuring regulatory compliance and product safety.

Packaging inspectionColor imagingHigh resolutionCompact form factorLabel verification

3. Robotic Guidance in Material Handling

With its GigE interface and PoE capability, this camera can be easily integrated with robotic systems for precise object detection and positioning in material handling. The global shutter ensures accurate capture of objects, even during robot movement, while the 12-24 VDC power option allows for direct power from common industrial control systems.

Problem Solved

Enables accurate and reliable robotic guidance by providing clear, real-time images of objects, improving pick-and-place operations and reducing errors in sorting and material flow.

Robotic visionObject detectionMaterial handlingGigE interfacePoEReal-time imaging
