USD 434.77

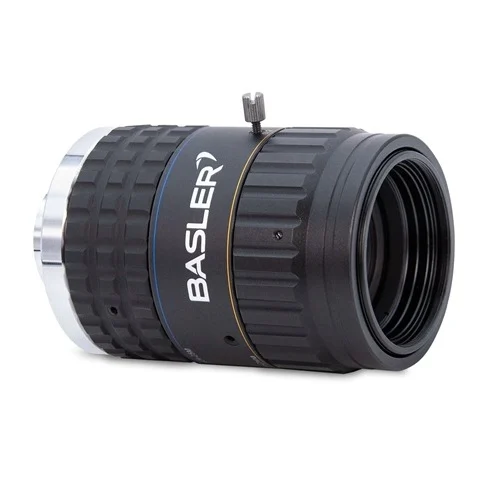

Premium 50mm C-mount fixed focal lens for 1.2″ sensors. Supports up to 25 MP resolution, 2.71 µm pixel pitch, and F2.4-F16 manual iris.
Premium 50mm C-mount fixed focal lens for 1.2" sensors. Supports up to 25 MP resolution, 2.71 µm pixel pitch, and F2.4-F16 manual iris.
| Parameter | Value |
|---|---|
| Lens Type | Fixed Focal Lens |
| Focal Length | 50 mm |
| Mount | C-mount |
| Sensor Format Compatibility | 1.2" |
| Resolution Capacity | 25 MP |
| Iris Range | F2.4 - F16 |
| Iris Control Type | Manual |
| Pixel Pitch Compatibility | 2.71 µm |
| Minimum Working Distance | 200 mm |
| Wavelength Range | Visible |
| Coaxial Illumination Option | No |
| Warranty | 36 Months |
| Physical Weight (kg) | 0.2775 |
| Dimensions L x W x H (cm) | 0 x 0 x 0 |
Utilizes the 25 MP resolution capability and 2.71 µm pixel pitch compatibility to image dense circuit board layouts, allowing inspection software to locate micro-cracks and trace defects.
Resolves the challenge of identifying microscopic solder bridges and trace defects on modern high-density PCBs.
Applies the low distortion characteristics and 50 mm focal length of the lens to achieve accurate, high-contrast measurements on machined metallic parts from a working distance of 200 mm or greater.
Eliminates measurement inaccuracies caused by optical distortion and vignetting across the edges of large 1.2" image sensors.
Performs high-precision alignment verification of semiconductor wafers under visible spectrum light using a C-mount area scan camera.
Ensures highly repeatable and crisp image capture of alignment fiducials at close working ranges.
