$ 420.90 $ 2,720.90Price range: $ 420.90 through $ 2,720.90
Omron CJ2 CPU Units inherit and improve CJ1 features while also adding EtherNet/IP as a standard feature for high-speed, high-capacity Ethernet-based networking.
| Product name |
Specifications | Current consump- tion (A) |
Model | ||||||
|---|---|---|---|---|---|---|---|---|---|
| I/O capacity/ Mountable Units (Expansion Racks) |
Pro- gram ca- pacity |
Data memory capacity |
LD instruc- tion execution time |
EtherNet/ IP function |
Option board slot |
5 V | 24 V | ||

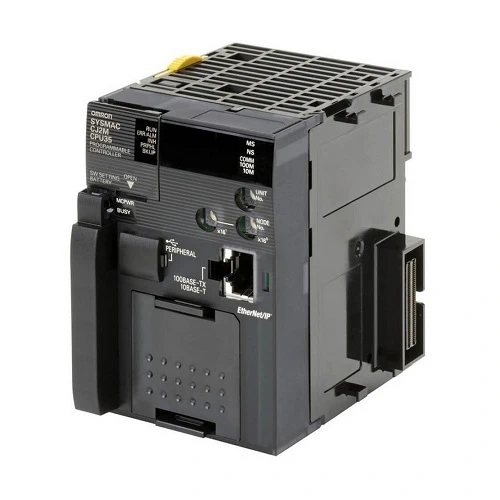

| CJ2M (Built-in EtherNet/ IP) CPU Units |
2,560 points/ 40 Units (3 Expansion Racks max.) |
60K steps |
160K words (DM: 32K words, EM: 32K words × 4 banks) |
0.04 μs | YES | YES | 0.7 * |
– | CJ2M-CPU35 |
| 30K steps |
CJ2M-CPU34 | ||||||||
| 20K steps |
64K words (DM: 32K words, EM: 32K words × 1 bank) |
CJ2M-CPU33 | |||||||
| 10K steps |
CJ2M-CPU32 | ||||||||
| 5K steps |
CJ2M-CPU31 | ||||||||
* Add 0.005A, 0.030A and 0.075A when using Serial Communications Option Boards (CP1W-CIF01/CIF11/CIF12-V1),
respectively.
Add 0.15A/Unit when using NT-AL001 RS-232C/RS-422A Adapters.
Add 0.04A/Unit when using CJ1W-CIF11 RS-422A Adapters.
Add 0.20A/Unit when using NV3W-M[]20L(-V1) Programmable Terminals.
| duct name |
Specifications | Current consump- tion (A) |
Model | ||||||
|---|---|---|---|---|---|---|---|---|---|
| I/O capacity/ Mountable Units (Expansion Racks) |
Pro- gram ca- pacity |
Data memory capacity |
LD instruc- tion execution time |
EtherNet/IP function |
Option board slot |
5 V | 24 V | ||
| CJ2M CPU Units |
2,560 points/ 40 Units (3 Expansion Racks max.) |
60K steps |
160K words (DM: 32K words, EM: 32K words × 4 banks) |
0.04 μs | – | – | 0.5 * |
– | CJ2M-CPU15 |
| 30K steps |
CJ2M-CPU14 | ||||||||
| 20K steps |
64K words (DM: 32K words, EM: 32K words × 1 bank) |
CJ2M-CPU13 | |||||||
| 10K steps |
CJ2M-CPU12 | ||||||||
| 5K steps |
CJ2M-CPU11 | ||||||||
* Add 0.15A/Unit when using NT-AL001 RS-232C/RS-422A Adapters.
Add 0.04A/Unit when using CJ1W-CIF11 RS-422A Adapters.
Add 0.20A/Unit when using NV3W-M[]20L(-V1) Programmable Terminals.
