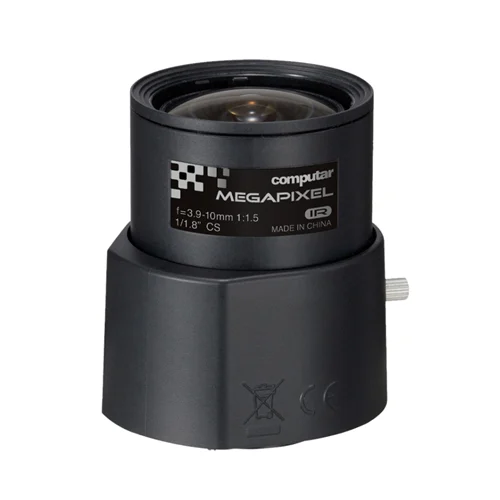

CS-mount 3.9–10 mm varifocal lens, F1.5, DC auto iris, manual focus/zoom, for 1/1.8-type megapixel cameras.
CS-mount 3.9–10 mm varifocal lens, F1.5, DC auto iris, manual focus/zoom, for 1/1.8-type megapixel cameras.
| Parameter | Value |
|---|---|
| Model No. | EG3Z3915FCS-MPWIR |
| Focal Length | 3.9mm - 10mm |
| Max. Aperture Ratio | 1:1.5 |
| Max. Image Format | 7.1mm x 5.4mm (φ8.9mm) |
| Operation Range - Iris | F1.5 - F360C |
| Operation Range - Focus | 0.8m - Inf. |
| Operation Range - Zoom | 3.9mm - 10mm |
| Control - Iris | DC Auto Iris |
| Control - Focus | Manual |
| Control - Zoom | Manual |
| Effective Front | φ25.0mm |
| Lens Aperture - Rear | φ10.0mm |
| Back Focal - Tele | 8.5mm |
| Back Focal - Wide | 8.5mm |
| Flange Back Length | 12.5mm |
| Mount | CS-Mount |
| Filter Size | - |
| Dimensions | φ40 mm x 49 mm x 59 mm |
| Weight | 72g |
| Angle of View - D (1/1.8 type) | 144.1° - 52.9° |
| Angle of View - H (1/1.8 type) | 108.1° - 42.1° |
| Angle of View - V (1/1.8 type) | 79.7° - 32.0° |
| Angle of View - D (1/2 type) | 124.8° - 47.5° |
| Angle of View - H (1/2 type) | 96.0° - 37.9° |
| Angle of View - V (1/2 type) | 70.2° - 28.4° |
| Angle of View - D (1/3 type) | 89.3° - 35.5° |
| Angle of View - H (1/3 type) | 70.2° - 28.4° |
| Angle of View - V (1/3 type) | 52.1° - 21.3° |
| Coil Drive | 190Ω/20℃ |
| Control | 855Ω/20℃ |
| Operating Temperature | -20℃ - +60℃ |
| Wiring | Pin 1 Brown Control(-), Pin 2 Red Control(+), Pin 3 Yellow Drive(+), Pin 4 Orange Drive(-) |
| Thread | 1-32UNF |
| Cable Length | L=310 |
| Physical Weight (kg) | 0.07 |
| Dimensions L x W x H (cm) | 5.9 x 4 x 4.9 |
The 3.9 mm to 10 mm varifocal range lets integrators tune field of view for conveyor inspection stations without changing the lens.
Eliminates camera replacement when inspection distance or target size changes.
The DC auto iris and F1.5 aperture support exposure control for changing light conditions in surveillance deployments.
Helps maintain usable image brightness and contrast across daylight and low-light scenes.
Wide-to-tele coverage and large angle-of-view range suit access points where framing must be adjusted for near and far subjects.
Provides flexible framing for entrances, lobbies, and corridors using one optical module.
