USD 295.83

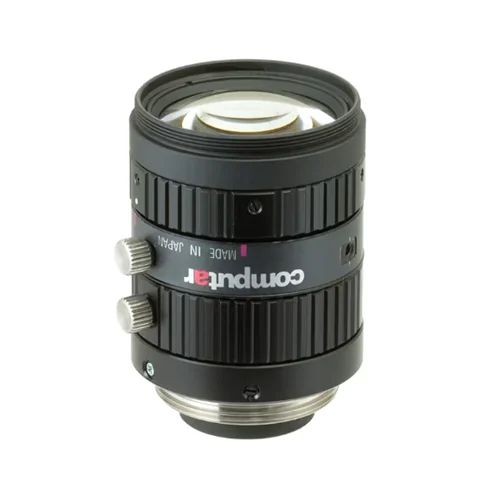

8 mm F2.8 C-mount lens for 2/3-inch, 16MP inspection imaging with shock-resistant construction and 0.1 m to infinity focus.
8 mm F2.8 C-mount lens for 2/3-inch, 16MP inspection imaging with shock-resistant construction and 0.1 m to infinity focus.
| Parameter | Value |
|---|---|
| Focal Length | 8 mm |
| Maximum Aperture | F2.8 |
| Image Format | 2/3 inch |
| Max Image Format Diameter | 11.8 mm |
| Focus Range | 0.1 m - Infinity |
| Iris Control | Manual |
| Focus Control | Manual |
| Mount | C-mount |
| Back Focal Length | 10.2 mm |
| Flange Back Length | 17.526 mm |
| Operating Temperature | -10 °C to +50 °C |
| Optical Distortion (2/3 inch) | +0.06% |
| Angle of View (2/3 inch, D/H/V) | 67.5° / 56.4° / 43.9° |
| Weight | 89 g |
| Dimensions | 31.8 mm diameter x 39.45 mm length |
| Shock Resistance | 10 G |
| Anti-vibration Rating | 10 G |
| Sensor Support | 2 μm or less pixel size; 16 MP cameras |
| Filter Size | M30.5 x 0.5 |
| Physical Weight (kg) | 0.09 |
| Dimensions L x W x H (cm) | 3.95 x 3.18 x 3.18 |
The 8 mm focal length and 16MP-rated optical design support board-level inspection where stable edge definition and field coverage are required on 2/3-inch sensors.
Maintains image sharpness and dimensional consistency for defect detection on densely packed PCBs.
The 10G shock and anti-vibration design makes the lens suitable for cameras mounted on machinery, conveyors, or robotic cells with continuous mechanical vibration.
Reduces image shift and aberration caused by machine vibration.
With a 0.1 m to infinity focus range and manual precision adjustment, the lens is well suited to stations that inspect parts at varying working distances.
Supports flexible inspection setup without changing optics for different standoff distances.
