USD 285.18
12 mm F2.8 C-mount machine vision lens for 2/3″ 16 MP cameras; manual iris/focus, 0.10 m close focus, ruggedized body.

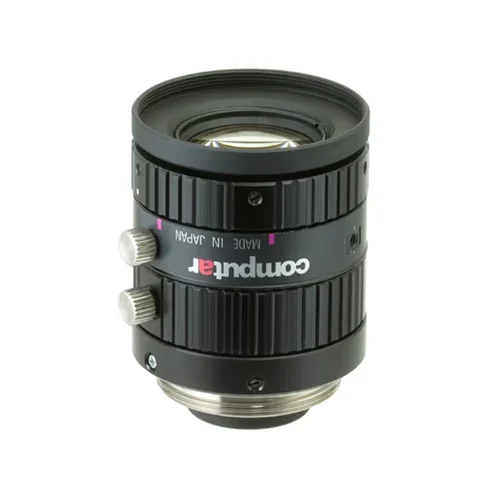

Computar M1228-MPX is a 2/3-inch fixed-focal machine vision lens with 12 mm focal length, F2.8 maximum aperture, manual iris and manual focus, C-mount interface, and ruggedized anti-vibration/shock-resistant construction for 16 MP cameras. The manufacturer lists it as suitable for harsh inspection environments, with close-focus capability to 0.10 m and support for 2 μm pixel size sensors. Verified physical data from the technical sheet include a 31.8 mm outer diameter, 35.9 mm overall length, and 78 g weight.
| Parameter | Value |
|---|---|
| Image Format | 2/3 type |
| Focal Length | 12 mm |
| Maximum Aperture Ratio | 1:2.8 |
| Iris Range | F2.8 - F16.0 |
| Focus Range | 0.10 m - Infinity |
| Mount | C-mount |
| Control | Manual iris, manual focus |
| Pixel Size Support | 2 μm or less |
| Anti-vibration Rating | 10G |
| Shock Resistance | 10G |
| Filter Size | M30.5 x 0.5 |
| Effective Lens Aperture (Front) | φ 17.2 mm |
| Effective Lens Aperture (Rear) | φ 12.5 mm |
| Image Circle Diameter | φ 11.8 mm |
| Back Focal Length | 10.2 mm |
| Flange Back Length | 17.526 mm |
| Distortion (Infinity, 2/3 Type) | 0.14% |
| Operating Temperature | -10°C to +50°C |
| Dimensions | φ 31.8 mm × 35.9 mm |
| Weight | 78 g |
Deploy on factory conveyor vision stations where the camera sees mechanical vibration from motors, frames, or product impact. The 10G shock and vibration resistance helps preserve focus and image stability.
Prevents image aberration and focus drift in vibrating inspection cells.
Use with 2/3-inch 16 MP cameras and small-pixel sensors to inspect fine solder joints, component placement, or micro-features at close range down to 0.10 m.
Maintains usable sharpness for micron-level inspection tasks on compact targets.
Fit into rugged industrial quality cells where dust, impact, or mechanical stress are present and where a C-mount lens with compact 31.8 mm diameter is needed.
Provides a compact rugged lens option for inspection systems that need durable optics in constrained spaces.
