USD 274.54

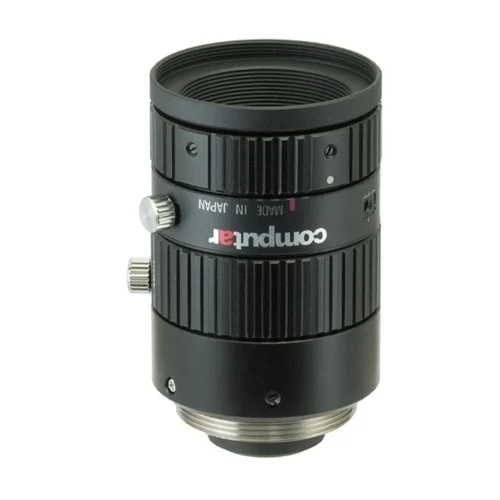

16 mm F2.8 C-mount machine vision lens for 2/3-inch sensors, 16 MP, manual iris/focus, shock-resistant construction.
2/3-inch 16 mm F2.8 fixed-focal machine vision lens for up to 16 MP cameras. The MPX series is designed for inspection and harsh industrial environments, with shock-resistant and anti-vibration construction, manual iris and focus, and support for short working distances from 0.1 m to infinity. Official Computar documentation lists a 1:2.8 max aperture, C-mount interface, M30.5 x 0.5 filter thread, 17.526 mm flange back, and compact cylindrical housing.
| Parameter | Value |
|---|---|
| Focal length | 16 mm |
| Max. aperture ratio | 1:2.8 |
| Image circle diameter | φ11.8 mm |
| Operation range - iris | F2.8 to F16.0 |
| Operation range - focus | 0.10 m to infinity |
| Control - iris | Manual |
| Control - focus | Manual |
| Operating temperature | -10 °C to +50 °C |
| Distortion at infinity, 2/3 type | 0.24% to 0.25% reported in sources |
| Back focal length | 10.3 mm |
| Flange back length | 17.526 mm |
| Mount | C-mount |
| Filter size | M30.5 P=0.5 mm |
| Dimensions | φ31.8 mm × 35.45 mm |
| Weight | 74 g |
| Sensor format | 2/3 inch |
| Shocks/Vibration resistance | 10 G shock resistance and 10 G anti-vibration design |
| Pixel size support | 2 μm or less |
| Working distance | 0.1 m to infinity |
Machine vision on presses, conveyors, or vibratory feeders where image shift and defocus must stay controlled under mechanical shock.
Prevents blur and focus drift in environments with sustained vibration and impact.
Inline QA on parts requiring 16 MP resolution and stable 2/3-inch coverage for dimensional inspection and defect detection.
Maintains repeatable imaging geometry for accurate visual measurement.
Robotic or automated workcells needing one fixed lens to cover both close-up setup and longer standoff imaging from 0.1 m to infinity.
Reduces lens swaps while preserving focus flexibility across variable station layouts.
