USD 263.89

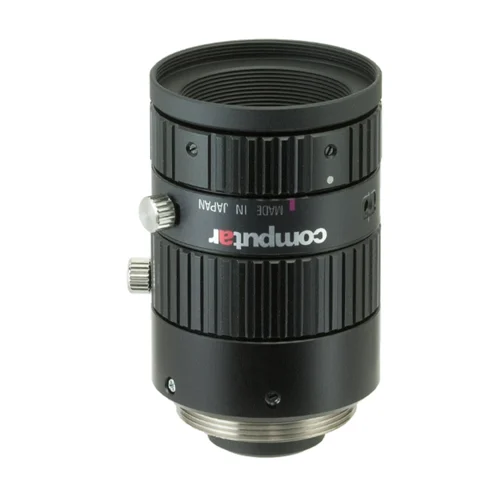

25 mm F2.8 C-mount machine vision lens for 2/3-inch 16 MP sensors; manual iris, anti-vibration, 0.1 m–∞ focus.
Fixed-focal machine vision lens for 2/3-inch sensors, rated for 16-megapixel cameras and built on a C-mount interface. The M2528-MPX uses a 25 mm focal length, F2.8 to F16 manual iris range, 0.10 m to infinity focus range, and a shock-resistant anti-vibration design intended for harsh inspection environments. Manufacturer resources identify it as discontinued/limited quantity, and the official spec sheet lists a compact 31.8 mm diameter by 45.6 mm length body with 83 g mass.
| Parameter | Value |
|---|---|
| Focal Length | 25 mm |
| Maximum Aperture Ratio | 1:2.8 |
| Image Circle Diameter | φ11.8 mm |
| Iris Range | F2.8 to F16.0 |
| Focus Range | 0.10 m to infinity |
| Iris Control | Manual |
| Focus Control | Manual |
| Operating Temperature | -10°C to +50°C |
| Sensor Size | 2/3 inch |
| Diagonal Angle of View | 24.8° |
| Horizontal Angle of View | 20.0° |
| Vertical Angle of View | 15.1° |
| Distortion at Infinity | 0.07% (2/3 type) |
| Back Focal Length | 9.5 mm |
| Flange Back Length | 17.526 mm |
| Mount | C-mount |
| Filter Size | M30.5 P=0.5 mm |
| Dimensions | φ31.8 mm × 45.6 mm |
| Weight | 83 g |
| Anti-vibration Resistance | 10G |
| Shock Resistance | 10G |
The 10G anti-vibration and 10G shock-resistant construction helps preserve image stability on conveyors, presses, or robotic cells with repetitive mechanical excitation.
Prevents focus drift and aberration-induced quality loss in vibration-heavy inspection cells.
The 25 mm focal length and 2 μm pixel support make it suitable for dimensional inspection where detail resolution and low distortion matter.
Enables sharp edge measurement and defect detection on high-resolution industrial cameras.
The floating optical mechanism, 0.10 m to infinity focus range, and manual iris give flexibility for cells that alternate between near-field and longer-distance imaging.
Maintains usable focus and image quality across changing working distances without changing lenses.
