USD 99.96
35mm C-mount manual iris/focus lens for 2/3-inch megapixel cameras; 0.3 m–∞ focus, F1.4, locking rings.

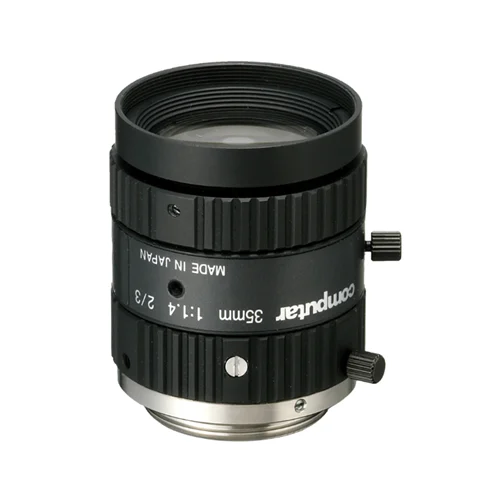

35mm C-mount manual iris/focus machine vision lens for 2/3-inch megapixel cameras. Manufacturer and distributor sources identify it as the MP2 series model M3514-MP, with 1:1.4 maximum aperture, 0.3 m to infinity focus range, 17.526 mm flange back length, M30.5 filter thread, and a compact 87 g body. The lens is specified for 2/3-inch sensors and includes locking set screws on iris and focus rings for stable industrial setup.
| Parameter | Value |
|---|---|
| Focal Length | 35mm |
| Max. Aperture Ratio | 1:1.4 |
| Max. Image Format | 8.8mm x 6.6mm (φ11mm) |
| Operation Range - Iris | F1.4 - F16C |
| Operation Range - Focus | 0.3m - Inf. |
| Control - Iris | Manual |
| Control - Focus | Manual |
| Mount | C-Mount |
| Filter Size | M30.5 P=0.5mm |
| Back Focal Length | 17.1mm |
| Flange Back Length | 17.526mm |
| Distortion - 2/3 type | -0.8% (y=5.5) |
| Distortion - 1/2 type | -0.39% (y=4.0) |
| Operating Temperature | -10°C ~ +50°C |
| Effective Lens Aperture - Front | φ24mm |
| Dimensions | φ33.5mm x 38.2mm |
| Weight | 87g |
The 35mm focal length and 2/3-inch image circle suit inspection stations that need a tighter field of view than standard 25mm lenses while keeping stable C-mount integration.
Reduces perspective distortion and improves defect visibility on small components at fixed standoff distances.
The manual focus range from 0.3 m to infinity and F1.4 aperture support installation in narrow conveyor cells where lens position must be locked after commissioning.
Maintains focus and image brightness in compact reading stations with limited mounting adjustment.
The lens’s low distortion specification and fixed-mechanics design make it suitable for measurement setups requiring repeatable imaging geometry.
Improves measurement consistency by limiting image warping and preventing ring drift after alignment.
