35 mm F2.8 C-mount machine-vision lens for 16MP 2/3-inch sensors; manual iris/focus, 0.15 m close focus, ruggedized 10G design.

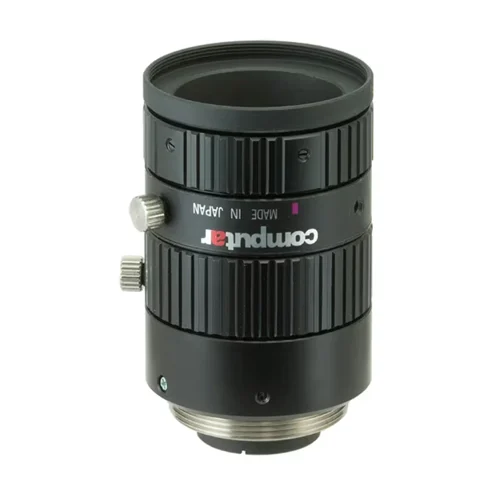

2/3-inch C-mount fixed focal industrial lens for 16MP machine vision cameras. The M3528-MPX is a 35 mm F2.8 manual-iris, manual-focus lens designed for high-resolution inspection in shock- and vibration-prone environments. Manufacturer materials indicate a ruggedized MPX optical/mechanical design, support for 2 μm pixel-size sensors, and operation from close-up to infinity. Published specs also list 0.15 m minimum focus distance, 10G shock/vibration resistance, M30.5 filter thread, and a 17.526 mm flange back length.
| Parameter | Value |
|---|---|
| Focal Length | 35 mm |
| Maximum Aperture Ratio | 1:2.8 |
| Image Format | 2/3 inch |
| Operation Range Iris | F2.8 - F16.0 |
| Operation Range Focus | 0.15 m - Infinity |
| Control Iris | Manual |
| Control Focus | Manual |
| Mount | C-Mount |
| Back Focal Length | 10.9 mm |
| Flange Back Length | 17.526 mm |
| Filter Size | M30.5 P=0.5 mm |
| Operating Temperature | -10°C to +50°C |
| Optical Distortion | 2/3 inch: 0.10% |
| Weight | 82 g |
| Dimensions | φ31.8 mm x 46 mm |
| Shock/Vibration Resistance | 10G |
| Supported Pixel Size | 2 μm or less |
| Max Image Format | φ11.8 mm |
The 10G shock/vibration-resistant optical/mechanical design helps maintain image stability on presses, conveyors, and robotic stations.
Reduces focus drift and image aberration caused by machine vibration.
The 35 mm focal length and support for 2 μm pixel-size sensors suit detailed dimensional inspection where high spatial fidelity is needed.
Provides sufficient image resolution and narrow field of view for defect detection and metrology.
The 0.15 m minimum focus distance and floating mechanism support stable imaging from close-up to longer working distances.
Maintains usable focus across varying standoff distances in automated inspection fixtures.
