50 mm C-mount machine-vision lens for 2/3-type sensors, manual focus/iris, 0.04% distortion, 85 g body.

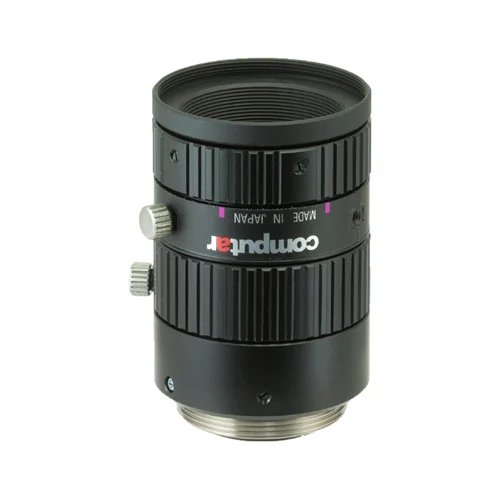

Computar M5028-MPX is a fixed-focal machine vision lens for 2/3-type sensors with a 50 mm focal length, F2.8–F16 iris range, manual focus/iris control, C-mount interface, and low 0.04% distortion. Manufacturer and distributor references identify it as a 16 MP industrial lens intended for inspection and harsh-environment imaging.
| Parameter | Value |
|---|---|
| Focal length | 50 mm |
| Maximum aperture ratio | 1:2.8 |
| Image circle diameter | 11.8 mm |
| Iris range | F2.8 to F16.0 |
| Focus range | 0.2 m to infinity |
| Iris control | Manual |
| Focus control | Manual |
| Mount | C-mount |
| Filter size | M30.5 P=0.5 mm |
| Distortion (infinity) | 0.04% |
| Back focal length | 13.2 mm |
| Flange back length | 17.526 mm |
| Operating temperature | -10 °C to +50 °C |
| Sensor size | 2/3 type |
| Angle of view, diagonal (2/3 type) | 12.6° |
| Angle of view, horizontal (2/3 type) | 10.1° |
| Angle of view, vertical (2/3 type) | 7.5° |
| Dimensions | 31.8 mm × 46 mm |
| Weight | 85 g |
The 50 mm focal length and 0.04% distortion support dimensional inspection where edge fidelity and stable field geometry matter.
Minimizes lens-induced measurement error in metrology and QA imaging.
The 0.2 m to infinity focus range allows the lens to be set farther from the target while maintaining crisp focus for enclosed or hazardous stations.
Enables inspection of parts that cannot be placed close to the camera.
The narrow angle of view on 2/3-type sensors helps isolate components in robotics pick, locate, and presence-check tasks.
Reduces background clutter and improves target isolation in automated handling.
