USD 380.99

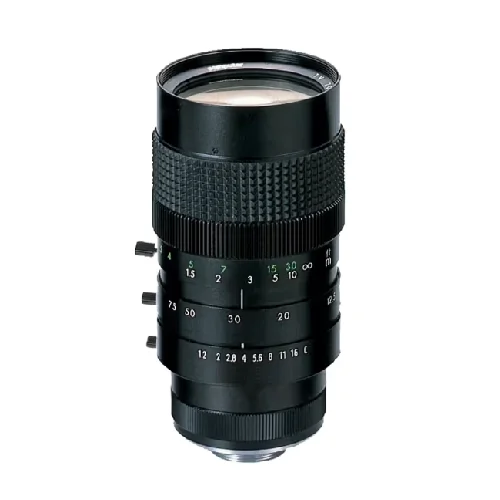

2/3″ C-mount manual zoom lens, 12.5-75 mm, f/1.2, manual iris/focus, locking set screws.
Discontinued 2/3-inch C-mount manual zoom lens with 12.5-75 mm focal range, f/1.2 maximum aperture, manual iris, manual focus, and locking set screws. Manufacturer and distributor sources identify it as a 6x zoom lens intended for inspection, machine vision, robotics, and industrial surveillance imaging. Verified physical size is approximately 59.5 mm diameter by 114.5 mm length, with 483 g mass.
| Parameter | Value |
|---|---|
| Lens format | 2/3 inch |
| Mount | C-mount |
| Focal length | 12.5-75 mm |
| Maximum aperture | f/1.2 |
| Zoom ratio | 6x |
| Iris control | Manual |
| Focus control | Manual |
| Zoom control | Manual |
| Locking feature | Locking set screws |
| Image circle / effective format | 2/3 inch |
| Back focal length | 15.4 mm |
| Filter thread | M55 x 0.75 |
| Minimum object distance | 1 m to infinity |
| Operating temperature | -10 C to +50 C |
| Dimensions | 59.5 mm diameter x 114.5 mm length |
| Weight | 483 g |
| Image format compatibility | 2/3 inch; also listed for 1/2 inch and 1/3 inch use in distributor specs |
| Application focus | Inspection, machine vision, robotics |
The 12.5-75 mm manual zoom and f/1.2 aperture let integrators frame variable part sizes while keeping exposure margins in controlled lighting.
Eliminates the need to swap lenses when inspection stations must cover multiple field-of-view sizes on one camera.
The manual focus and iris with locking set screws help stabilize calibration after setup on fixed robotic inspection or guidance rigs.
Prevents drift in focus and exposure after mechanical adjustment or vibration in a production robot cell.
The 6x zoom range supports wide-to-narrow framing changes for monitoring equipment, gates, or process areas without changing the camera body.
Provides a single-lens solution when operators must alternate between overview and detail viewing distances.
