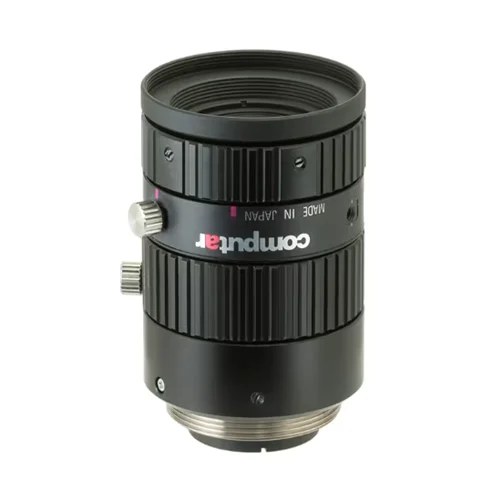

75mm C-mount machine vision lens for 2/3″ 16MP cameras; manual iris/focus, floating mechanism, shock/vibration resistant.
Fixed-focal C-mount machine vision lens for 2/3" sensors and 16MP cameras. The M7538-MPX is a 75mm lens with manual iris/focus, 0.25m to infinity working range, floating optical mechanism, and shock/vibration-resistant construction for harsh inspection environments. Manufacturer and distributor sources identify it as a discontinued limited-quantity product.
| Parameter | Value |
|---|---|
| Focal length | 75 mm |
| Lens format | 2/3 in |
| Camera resolution class | 16 megapixel |
| Mount | C-mount |
| Iris control | Manual |
| Focus control | Manual |
| Working distance | 0.25 m to infinity |
| Pixel size support | 2 µm or less |
| Anti-vibration | 10 G |
| Shock resistance | 10 G |
| Max. aperture ratio | 1:3.8 |
| Distortion (infinity) | 0.01% |
| Image circle diameter | 11.8 mm |
| Back focal length | 11.9 mm |
| Iris range | F3.8 to F16.0 |
| Effective lens aperture, front | 18.5 mm |
| Effective lens aperture, rear | 11.0 mm |
| Filter size | M30.5 x 0.5 |
| Operating temperature | -10 °C to +50 °C |
| Dimensions | 31.8 mm diameter x 46 mm length |
| Weight | 89 g |
The 75 mm focal length and 2/3" format support stable, narrow-field inspection of surfaces, while the 0.01% distortion helps preserve metrology accuracy.
Reduces edge distortion and supports repeatable defect detection in inspection cells.
The 10 G shock resistance and 10 G anti-vibration design make the lens suitable for mounted vision systems on moving production equipment or robot arms.
Maintains optical alignment and image stability where standard lenses can drift or blur.
The 75 mm focal length, floating mechanism, and manual focus range from 0.25 m to infinity suit component verification where stand-off distance is required.
Provides detailed imaging when the camera must be placed away from the target for clearance or safety.
