USD 487.44

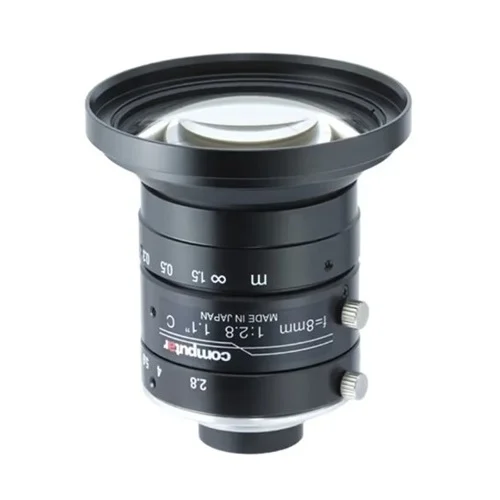

8 mm C-mount fixed-focal lens with manual iris/focus, F2.8–F16, 1.1-type 24 MP support, and 157.4 g mass.
8 mm C-mount fixed-focal lens with manual iris/focus, F2.8–F16, 1.1-type 24 MP support, and 157.4 g mass.
| Parameter | Value |
|---|---|
| Model No. | V0828-MPY2 |
| Focal Length | 8mm |
| Max. Aperture Ratio | 1:2.8 |
| Max. Image Format | 14.2mm x 10.4mm (φ17.6mm) |
| Operation Range - Iris | F2.8 - F16.0 |
| Operation Range - Focus | 0.2m - Inf. |
| Control - Iris | Manual |
| Control - Focus | Manual |
| Effective Front Lens Aperture | φ42.2mm |
| Rear Lens Aperture | φ15.3mm |
| Distortion - 1.1 type | -0.6% |
| Distortion - 1 type | -1.7% |
| Distortion - 2/3 type | -2.8% |
| Back Focal Length | 8.6mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Weight | 157.4g |
| Dimensions | φ57.5mm x 53.2mm |
| Dimensions with VM0811 | φ75.0mm x 54.0mm |
| Dimensions with VM0810 | φ70.0mm x 54.0mm |
| Filter Size | - |
| Angle of View D - 1.1 Type | 93.9° |
| Angle of View H - 1.1 Type | 83.0° |
| Angle of View V - 1.1 Type | 66.0° |
| Angle of View D - 1 Type | 89.3° |
| Angle of View H - 1 Type | 77.3° |
| Angle of View V - 1 Type | 61.7° |
| Angle of View D - 2/3 Type | 69.0° |
| Angle of View H - 2/3 Type | 57.3° |
| Angle of View V - 2/3 Type | 44.2° |
| Operating Temperature | -10℃ to +50℃ |
| Physical Weight (kg) | 0.16 |
| Dimensions L x W x H (cm) | 5.32 x 5.75 x 5.75 |
An 8 mm fixed focal length with published distortion values and 1.1-type 24 MP support makes it suitable for stable close-range board imaging on automated inspection cells.
Provides repeatable field coverage and high image detail for solder joint, component placement, and trace inspection.
The manual iris and focus controls let integrators tune depth of field and exposure for label, code, and seal verification under varying line lighting.
Helps maintain consistent inspection quality when package height, gloss, and illumination vary across production runs.
The specified angle-of-view and minimum object distance support dimensional verification of small mechanical parts at fixed working distances.
Enables accurate part presence and dimensional gauging without lens replacement across 1.1-type, 1-type, and 2/3-type cameras.
