1. AutomotivePaintShopPneumaticValveManifoldAssembly

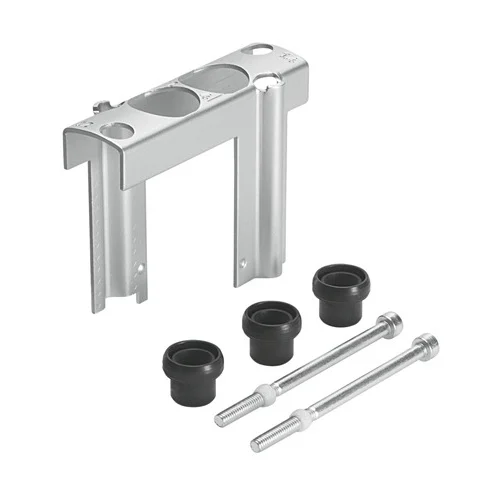

Inautomotivebodycoatinglines, pneumaticsystemsdriveroboticactuators, atomizers, andconveyorpositioningmechanisms.TheFestoCPE14-H5-SETisusedtosecurelymountCPE14compactperformancepneumaticdirectionalcontrolvalvestoinlinemanifoldsdirectlywithinoradjacenttothepaintapplicationarea[1.2].
Problem SolvedPrevents paint finish defects (such as craters or fisheyes) that are typically caused by the outgassing of silicones or chemical contaminants from standard pneumatic mounting hardware, while ensuring the valves remain securely fastened during operation.
LABS (PWIS) conformityVDMA24364-B1/B2-LPaint-Wetting Impairment SubstancesInline manifold1.2 Nm tightening torqueNBR seals
2. Lithium-Ion Battery Automated Handling Automation
Automated assembly cells for lithium-ion battery manufacturing require highly reliable, low-mass pneumatic control for pick-and-place robots and indexing conveyors. The retaining bracket is implemented as a mounting attachment to secure compact valves on rapid-moving End-Of-Arm Tooling (EOAT) and sorting modules.
Problem SolvedProvides a robust, vibration-resistant alignment for pneumatic valves on fast-moving automated structures without adding excessive payload mass, thereby enhancing assembly speed and product consistency in battery production facilities.
Product weight 28 gScrew-in mountingHigh-alloy stainless steel retaining bracketVibration resistanceRoHS-compliant
3. Municipal Water Filtration Skid Valve Control
Municipal water and wastewater treatment plants utilize automated filtration skids where pneumatic valves control fluid flow, backwash sequencing, and dosing mechanisms. The retainer set fastens the pneumatic pilot valves within the skid's control cabinets, which are frequently exposed to damp air and condensation.
Problem SolvedSolves the issue of mounting hardware degradation and rust in humid, moderately corrosive processing environments, ensuring that compressed air leaks do not occur over the lifespan of the filtration skid.
Corrosion resistance class CRC 2Moderate corrosion stressHigh-alloy stainless steelSteel Galvanised screwsFiltration skid automation
