| Protocol | PROFINET |
| Mounting grid pitch | 40 mm |
| Type of mounting | On electrical interface; On electrical connection block |
| Physical Weight (kg) | 0.093 |
| Ambient temperature | 0 °C...50 °C |
| Storage temperature | -20 °C...70 °C |
| Degree of protection | IP65; IP67 |
| Note on degree of protection | In mounted state; Unused connections sealed |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| CE mark (see declaration of conformity) | To EU EMC Directive; In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC; To UK RoHS instructions |
| KC mark | KC-EMV |
| Approval | RCM; c UL us - Listed (Oil) |
| Note on materials | RoHS compliant |
| Material housing | PA |

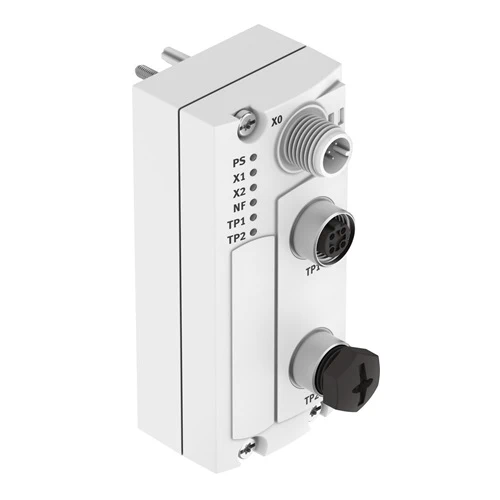

| LED display, product-specific | PS: Operating voltage for electronics and load supply; X1: System status of module at I-Port 1; X2: System status of module at I-Port 2 |
| LED display, bus-specific | NF: Network error; TP1: Network active port 1; TP2: Network active port 2 |
| Diagnosis | Communication error; System diagnostics; Undervoltage |
| Fieldbus interface | Ethernet |
| Field bus, protocol | PROFINET RT |
| Field bus, connection type | 2x socket |
| Field bus, connection system | M12x1, D-coded to EN 61076-2-101 |
| Field bus, connection pattern | 4 |
| Field bus interface, electrical isolation | Yes |
| Field bus interface, transmission rate | 100 Mbit/s |
| Max. address volume, inputs | 64 Byte |
| Max. address volume, outputs | 64 Byte |
| Internal cycle time | 1 ms per 1 byte of user data |
| Configuration support | GSDML file |
| Additional functions | Conformance class C; Fast start-up (FSU); LLDP; MRP; PROFINET IRT; PROFIenergy; SNMP; Shared device; Web server |
| Power supply, function | Electronics and load |
| Power supply, connection type | Plug |
| power supply, connection system | M12x1, A-coded according to EN 61076-2-101 |
| Power supply, number of pins/wires | 5 |
| Operational voltage range DC | 18 V...30 V |
| Nominal operating voltage DC | 24 V |
| Max. power supply | 4 A |
| Intern power consumption nominal operating voltage | Typ. 80 mA |
| Dimensions L x W x H (cm) | 9.1 x 4 x 5 |
