Ultra-compact double-acting pneumatic cylinder featuring a 25mm bore and 15mm stroke. Engineered with elastic cushioning, M5 connection, and male threaded rod.

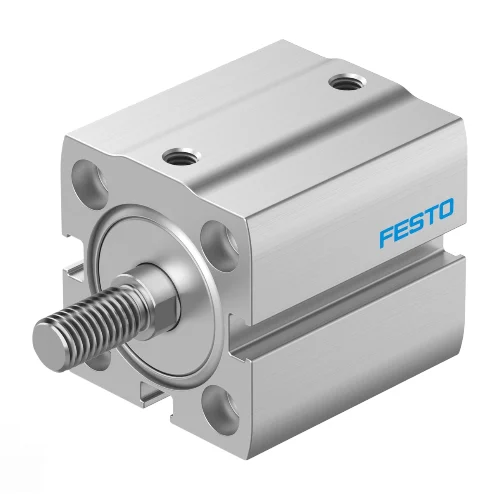

The Festo 8092107 (Model: ADN-S-25-15-A-P) is an ultra-compact, double-acting pneumatic cylinder engineered for high-density automation environments where space is heavily constrained. Featuring a 25 mm bore and a 15 mm stroke, this actuator is constructed with a high-alloy stainless steel piston rod and an anodized wrought aluminum alloy housing, ensuring robust durability despite its miniature footprint. Operating within a pressure range of 0.6 to 10 bar, the cylinder delivers a theoretical advance force of 295 N and a return force of 247 N at 6 bar. Elastic cushioning plates at both ends (P-cushioning) absorb up to 0.18 J of impact energy, mitigating vibration during rapid cycling operations. The unit connects via an M5 pneumatic port and utilizes an A-type male thread on the piston rod. It is highly suitable for small parts assembly, pressing, or clamping tasks, offering straightforward integration into confined machine envelopes without compromising thrust performance.
| Parameter | Value |
|---|---|
| Action | Double-acting |
| Bore Size | 25 mm |
| Stroke Length | 15 mm |
| Pneumatic Connection | M5 |
| Piston Rod Thread | Male (A-Type) |
| Operating Pressure | 0.6 to 10 bar |
| Theoretical Advance Force (6 bar) | 295 N |
| Theoretical Return Force (6 bar) | 247 N |
| Cushioning | Elastic rings/plates at both ends |
| Impact Energy | 0.18 J |
| Operating Temperature | 0 °C to 60 °C |
| Housing Material | Anodized Wrought Aluminum Alloy |
| Piston Rod Material | High-Alloy Stainless Steel |
Used to repeatedly press smartphone buttons during life-cycle validation, requiring rapid actuation in an extremely tight footprint without applying destructive force.
Testing consumer electronics buttons requires a cylinder that fits into high-density test jigs while maintaining precise, low-friction actuation over millions of cycles.
Acts as a delicate pusher for PCBs or microchips on automated assembly lines, where space constraints prevent the use of standard ISO cylinders.
Needs gentle but firm manipulation of delicate components; the precise stroke and elastic cushioning prevent crushing while maintaining necessary positioning force.
Diverts or stops small, lightweight boxes on conveyor systems by extending its male-threaded piston rod into the path of the product.
Narrow conveyor guide rails leave no room for bulky actuators; this space-optimized design provides enough stopping force without intruding on adjacent lanes.
