Festo ADVU-32-50-A-P-A Compact Pneumatic Cylinder

Technical Overview

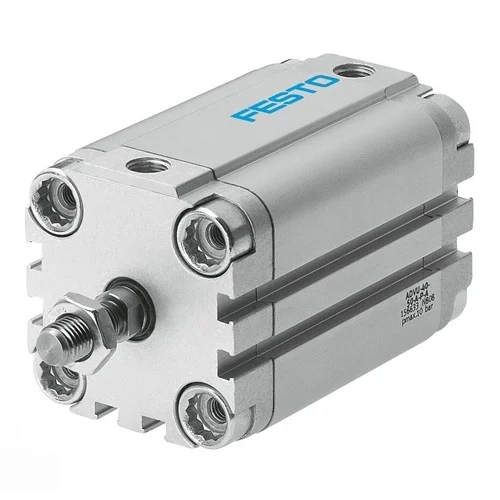

The Festo ADVU-32-50-A-P-A (part number 156623) is a double-acting compact pneumatic cylinder with a 32 mm bore and 50 mm stroke. Designed for space-efficient industrial applications, it requires 50% less installation space compared to standard ISO 15552 cylinders. The cylinder features an M10x1.25 male threaded piston rod, flexible elastic cushioning rings at both ends, and a magnetic piston that enables accurate proximity sensing. Constructed with a wrought aluminum alloy barrel and a high-alloy steel piston rod, it operates safely between 0.8 to 10 bar pressure. It connects via standard G1/8 pneumatic ports and is rated for ambient environments ranging from -20°C to 80°C.

Key Features

Space-savingdesignrequiring50%lessinstallationspacethanequivalentISO15552standards-basedcylinders[1.3].
Double-acting pneumatic operation with an M10x1.25 male thread piston rod.
Equipped with elastic cushioning rings/plates at both ends for impact reduction in end positions.
Built-in magnetic piston allows for precise position detection via proximity sensors.
Corrosion resistance classification of CRC 2, making it suitable for environments with moderate corrosion stress.
Flexible mounting options including through-hole installation or via optional accessories.

Technical Specification Matrix

Parameter	Value
Piston Bore Size	32 mm [1.1]
Stroke Length	50 mm
Operating Pressure	0.8 to 10 bar
Mode of Operation	Double-acting
Pneumatic Connection	G1/8
Piston Rod Thread	M10x1.25 Male Thread
Theoretical Force (Advance at 6 bar)	483 N
Theoretical Force (Return at 6 bar)	415 N
Ambient Temperature	-20 to 80 °C
Cushioning	Flexible cushioning rings/plates at both ends
Position Sensing	For proximity sensors
Material (Cylinder Barrel)	Wrought Aluminium Alloy

Industrial Applications

1. Automated Assembly Line Pressing

Utilizing the cylinder's 483 N of theoretical force and precise position sensing [1.8], it integrates effectively into tight spaces on robotic assembly lines for light pressing, riveting, or component insertion tasks.

Problem Solved

Resolves the issue of limited installation space on dense automated machines by requiring 50% less footprint than standard ISO cylinders while delivering reliable mechanical force.

483 N ForcePosition SensingDouble-actingSpace-saving

2. Material Handling and Sorting Gates

In pneumatic sorting and packaging systems, the ADVU cylinder actuates diverter gates at high speeds. The flexible cushioning plates absorb the kinetic energy (0.4 J) of fast-moving strokes, minimizing mechanical wear.

Problem Solved

Prevents mechanical fatigue and damage in high-speed repetitive diverter operations by utilizing built-in flexible cushioning to absorb end-position impacts.

Flexible CushioningG1/8 Connection0.4 J Impact EnergyHigh-cycle Pneumatics

3. Workpiece Clamping Fixtures

This compact cylinder effectively holds workpieces in place during CNC machining or welding operations. Operating reliably up to 10 bar pressure, it exerts strong clamping force, while its CRC 2 rating ensures resistance to moderate factory coolants and ambient moisture.

Problem Solved

Addresses the need for reliable, high-pressure clamping in moisture-exposed machine tool environments where the physical space surrounding the tooling area is severely restricted.

10 bar PressureCRC 2 RatingM10x1.25 ThreadClamping Force
