Ultra-compact 10mm manifold solenoid valve slice featuring dual 2/2-way normally closed pneumatics. Delivers 400 L/min flow at -0.9 to 10 bar using 24V DC.

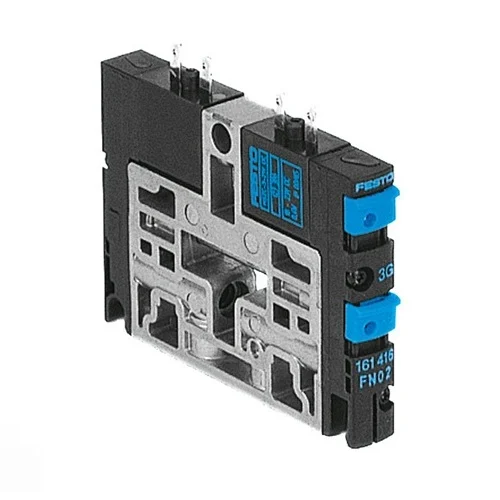

The Festo 185880 (model CPV10-M1H-2X2-GLS-M7) is a highly efficient, compact solenoid valve slice designed for the CPV (Compact Performance) valve terminal series. Housed within a slim 10mm profile, it integrates two independent 2/2-way, normally closed, monostable piston spool valves. It operates on a 24V DC electrical supply with an ultra-low power consumption of just 0.46 W. The valve accommodates operating pressures ranging from vacuum (-0.9 bar) up to 10 bar, achieving a standard nominal flow rate of 400 L/min through M7 pneumatic working ports. Engineered for demanding industrial environments, it features fast switching times (15 ms on / 17 ms off), soft sealing, and an IP65 degree of protection, making it highly versatile for high-density automated pneumatic systems.
| Parameter | Value |
|---|---|
| Valve Function | 2x 2/2-way, monostable, normally closed |
| Valve Size (Width) | 10 mm |
| Standard Nominal Flow Rate | 400 L/min |
| Operating Pressure Range | -0.9 to 10 bar |
| Operating Voltage | 24 V DC |
| Electrical Power Consumption | 0.46 W |
| Pneumatic Working Port | M7 |
| Degree of Protection | IP65 |
| Design Principle | Piston gate valve with soft sealing |
| Switching Time (On / Off) | 15 ms / 17 ms |
| Duty Cycle | 100% |
| Product Weight | 70 g |
The valve's unique capability to handle vacuum pressures down to -0.9 bar alongside its standard positive pressure range makes it highly suitable for driving suction cups in robotic pick-and-place lines.
Eliminates the need for separate vacuum and positive pressure valves by safely handling dual pressure states in one compact terminal, significantly saving end-of-arm tooling space.
In automated machining centers, multiple pneumatic clamps require independent control. The narrow 10mm width and dual 2/2-way function allow engineers to construct highly dense control manifolds.
Dramatically reduces the physical footprint of control cabinets by fitting two discrete normally-closed pneumatic control channels within a single ultra-compact 10mm manifold slice.
Utilized in extensive conveyor routing and sorting systems where power limits are constrained, functioning reliably via AS-Interface or Fieldbus modules without risking voltage drops.
Maintains optimal actuator speed while drawing an extremely low electrical load (0.46W), preventing overload on decentralized fieldbus network power supplies.
