Festo DARQ-R-A-S22-S14-22 Reducing Sleeve

Technical Overview

Sintered stainless steel reducing sleeve with SW22 to SW14 drive adaptation. Features a 22mm length, CRC 2 corrosion resistance, and PWIS conformity.

Key Features

Drive Adaptation: Seamlessly reduces SW22 outer profiles to SW14 inner sockets for process valve integration.
Material Construction: Manufactured from durable, high-strength sintered stainless steel for high torque transmission.
Corrosion Protection: Rated CRC 2 for reliable performance in moderate corrosion stress environments and light washdowns.
Precision Dimensions: Standardized 22mm overall length weighing precisely 62g for predictable system integration.
Cleanroom Ready: Conforms to VDMA24364 zone III LABS (PWIS) standards, completely free of paint-wetting impairment substances.

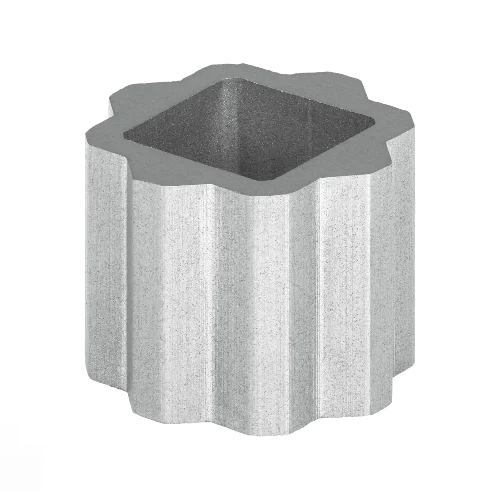

Drive Design: Features a dual-geometry square socket and external octagon drive design for versatile mechanical coupling.

Technical Specification Matrix

Parameter	Value
Length	22 mm
Weight	62 g
Connection 1 (Drive Outlet)	SW22 (Square/Octagon)
Connection 2 (Reducing Outlet)	SW14 (Square Socket)
Material	Sintered Stainless Steel
Corrosion Resistance Class (CRC)	2 (Moderate corrosion stress)
Conformity	VDMA24364 zone III LABS (PWIS), RoHS-compliant
Physical Weight (kg)	0.06
Dimensions L x W x H (cm)	2.2 x 2.2 x 2.2

Industrial Applications

1. Quarter-Turn Actuator Integration

The reducing sleeve seamlessly adapts an SW22 actuator drive output to an SW14 valve stem. This enables direct mechanical coupling of large quarter-turn pneumatic actuators with smaller ball or butterfly valves without requiring custom-machined brackets or couplings.

Problem Solved

Mismatched drive shaft dimensions between standard pneumatic actuators and process valves prevent reliable, slip-free torque transmission.

SW22 to SW14Quarter-turn actuatorProcess valveMechanical couplingTorque transmission

2. Corrosive Fluid Control Systems

Constructed from high-density sintered stainless steel with a CRC 2 rating, this reducing sleeve withstands moderate condensation and occasional chemical exposure, ensuring long-term automated actuation in water treatment and filtration skids.

Problem Solved

Standard carbon steel drive adapters rapidly rust and seize when exposed to ambient moisture or light industrial washdowns in fluid handling environments.

Sintered stainless steelCRC 2Corrosion resistanceFluid handlingFiltration skids

3. Automotive Paint Shop Valve Automation

Utilizing its strict VDMA24364 zone III LABS conformity, this adapter drives fluid supply valves inside automotive paint lines without releasing airborne silicone or outgassing contaminants.

Problem Solved

Standard mechanical components introduce paint-wetting impairment substances (PWIS) into the environment, causing fish-eyes and defects in automotive paint finishes.

VDMA24364PWIS conformityPaint-wetting impairment substancesCleanroomOutgassing
