This 18mm wide manifold sub-base features a die-cast aluminum housing and dual G1/8 pneumatic ports. Built to ISO 15407-1 standards for horizontal stacking.

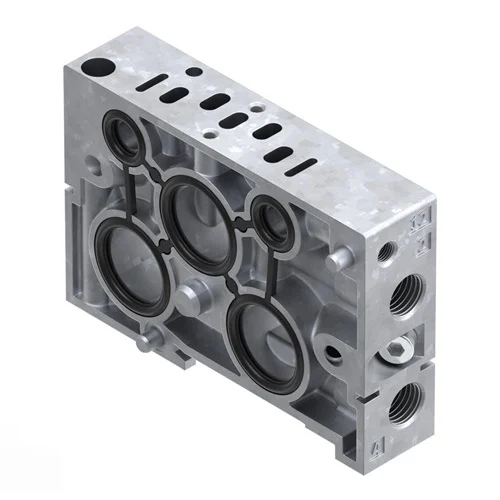

The Festo 161110 (NAW-1/8-02-VDMA) is an individual pneumatic manifold sub-base designed for horizontal stacking in industrial fluid control systems. Constructed from highly durable die-cast aluminum, it features a highly compact 18mm construction width to save space in dense machine layouts. It provides two secure G1/8" threaded pneumatic connections (for ports 2 and 4). Engineered to comply with the ISO 15407-1 standard, this sub-base is technically compatible with VSVA series valves. It is rated for compressed air according to ISO 8573-1:2010 [7:4:4] and maintains VDMA24364-B1/B2-L PWIS conformity, making it ideal for sensitive applications such as automotive paint systems.
| Parameter | Value |
|---|---|
| Width | 18 mm |
| Standard Compliance | ISO 15407-1 |
| Pneumatic Connections (Ports 2/4) | G1/8 |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Housing Material | Die-cast aluminum |
| PWIS (LABS) Conformity | VDMA24364-B1/B2-L |
| Product Weight | 130 g |
Facilitating precise directional control by providing a standardized sub-base for ISO 15407-1 compatible VSVA valves in a compact manufacturing footprint.
The 18mm width allows for dense horizontal stacking, minimizing the spatial requirements for valve manifolds on crowded robotic assembly lines.
Serving as the foundational manifold element for actuating pneumatic cylinders in fast-paced packaging and sorting equipment.
Enables reliable, high-flow distribution of compressed air with secure G1/8 threaded connections, ensuring leak-free performance and consistent actuator response times.
Controlling compressed air routing in automated paint application zones where chemical purity and material conformity are strictly regulated.
The strict VDMA24364-B1/B2-L conformity ensures the sub-base is completely free of paint-wetting impairment substances (PWIS), preventing defects in high-grade automotive finishes.
