USD 10.45

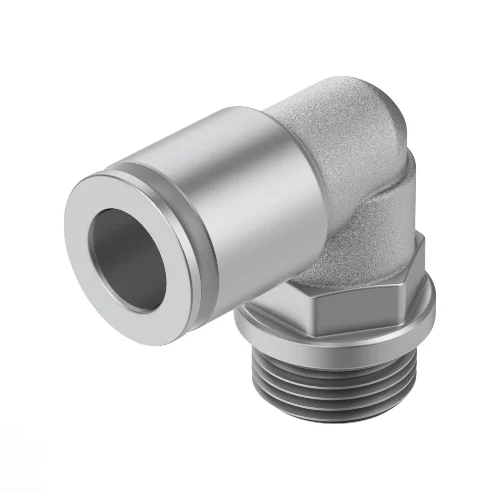

Festo chemically nickel-plated brass push-in L-fitting (G1/4 to 8mm). Withstands pressures up to 20 bar and temperatures up to 150°C. Food-grade and CRC 3.
Festo chemically nickel-plated brass push-in L-fitting (G1/4 to 8mm). Withstands pressures up to 20 bar and temperatures up to 150°C. Food-grade and CRC 3.
| Parameter | Value |
|---|---|
| Pneumatic Connection 1 | Male thread G1/4 |
| Pneumatic Connection 2 | For tubing O.D. 8 mm |
| Operating Pressure | -0.95 bar to 20 bar |
| Ambient Temperature | 0 °C to 150 °C |
| Material (Housing) | Chemically nickel-plated brass |
| Material (Seals) | FPM |
| Material (Tubing Retaining Claw) | High-alloy stainless steel |
| Corrosion Resistance Class (CRC) | 3 (High corrosion stress) |
| Food Safety | NSF/ANSI 169 compliant |
| Nominal Size | 6 mm |
| Max Tightening Torque | 15 Nm |
| Physical Weight (kg) | 0.03 |
| Dimensions L x W x H (cm) | 3.05 x 0 x 0 |
Integrated into automated packaging lines requiring pneumatic control routing in environments subjected to rigorous sanitization.
Standard plastic or brass fittings fail or create contamination hazards during chemical clean-in-place (CIP) washdowns. The NSF/ANSI 169 approved nickel-plated brass ensures safe, enduring performance.
Used for distributing compressed air to pneumatic grippers and actuators operating in close proximity to plastic injection molding or metal casting machines.
Standard pneumatic fittings lose structural integrity and seal effectiveness at high temperatures. The FPM seals and metal construction deliver continuous, leak-free performance at temperatures up to 150 °C.
Deployed in robotic pick-and-place lines using vacuum suction cups to move delicate or heavy loads.
Lightweight plastic fittings may collapse or experience seal leakage under significant vacuum pressures. This rugged fitting is engineered to maintain perfect sealing down to -0.95 bar.
