USD 8.96
Pneumatic push-in L-fitting with R1/4 male thread and 6mm tube capacity. Features a 360-degree orientable PBT housing rated for operation up to 14 bar.

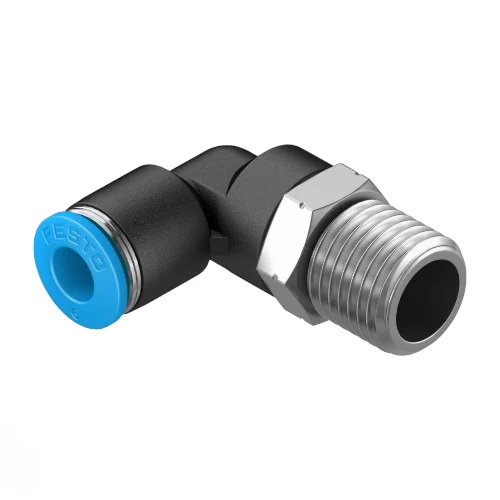

The Festo 153047 (Model QSL-1/4-6) is an industrial-grade, 90-degree pneumatic push-in L-fitting designed for efficient and reliable compressed air distribution. Featuring an R1/4 male threaded connection with a PTFE pre-coating for instant sealing, and a 6 mm push-in port for standardized pneumatic tubing, this fitting enables fast, tool-free assembly. The housing is constructed from rugged Polybutylene Terephthalate (PBT) and includes an NBR seal, ensuring leak-free performance across a broad operating pressure range of -0.95 to 14 bar. Furthermore, the fitting is 360-degree orientable, providing exceptional flexibility for routing airlines in space-constrained industrial automation systems, robotics, and complex pneumatic manifolds. Designed to operate safely in ambient temperatures ranging from -10°C to 80°C, the QSL-1/4-6 delivers durable, high-cycle performance in dynamic pneumatic applications.
| Parameter | Value |
|---|---|
| Fitting Type | Push-In L-Fitting (90° Angled) |
| Pneumatic Connection 1 | R1/4 Male Thread |
| Pneumatic Connection 2 | 6 mm Tubing O.D. |
| Operating Pressure | -0.95 to 14 bar |
| Ambient Temperature | -10 to 80 °C |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Seal Material | NBR |
| Release Ring Material | POM |
| Orientation | 360° Rotatable |
Routing compressed air to pneumatic grippers and actuators in tight spaces using the 360-degree orientable 90-degree angle fitting.
Prevents tubing kinks and allows flexible airline routing in confined robotic arms operating at standard 6-8 bar industrial pressures.
Connecting 6mm secondary branch lines from main R1/4 manifold ports to supply individual pneumatic valves or cylinders.
Enables fast, leak-free connections using the push-pull mechanism and pre-coated R1/4 threads without requiring additional messy thread sealants.
Delivering reliable pneumatic power to high-speed packaging actuators requiring quick assembly and disassembly for maintenance.
The robust POM release ring and PBT housing withstand frequent mechanical stress, vibration, and temperature variations up to 80 °C during continuous operation.
