360° orientable pneumatic elbow connector with R1/8 male thread and 6mm push-in port. PBT housing supports pressures from -0.95 to 14 bar across -10°C to 80°C.

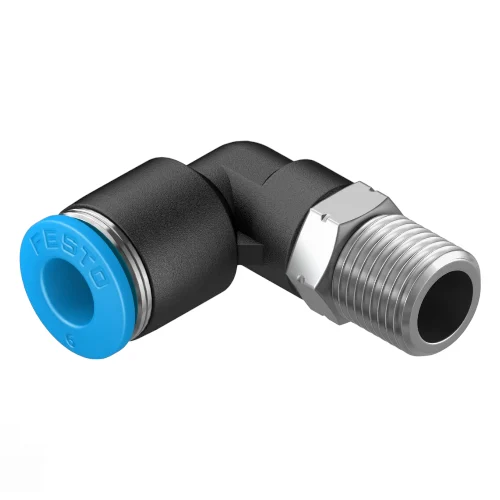

The Festo 153046 (Model: QSL-1/8-6) is a high-performance industrial pneumatic push-in L-fitting engineered for fast, reliable, and leak-free tubing connections. Designed around a reliable push-pull principle, this 360° orientable right-angle fitting features a male R1/8 threaded connection with a pre-applied sealant coating, alongside a port tailored for standard 6 mm outside diameter pneumatic tubing. Constructed with a rugged PBT housing, POM release ring, and a high-alloy, non-corrosive steel retaining claw, the connector securely anchors tubing against vibration and pressure spikes. Featuring integrated NBR seals and an operating temperature range of -10°C to 80°C, the QSL-1/8-6 provides exceptional durability and flow efficiency across diverse fluid automation, packaging, and control machinery applications.
| Parameter | Value |
|---|---|
| Design | L-shape, 360° orientable, push/pull principle |
| Pneumatic Connection 1 | Male thread R1/8 |
| Pneumatic Connection 2 | For tubing outside diameter 6 mm |
| Nominal Size | 4.2 mm |
| Operating Pressure (Complete Temp Range) | -0.95 to 6 bar |
| Temperature Dependent Operating Pressure | -0.95 to 14 bar |
| Ambient Temperature | -10 °C to 80 °C |
| Housing Material | PBT (Polybutylene Terephthalate) |
| Tubing Seal Material | NBR |
| Tubing Retaining Claw | High alloy steel, non-corrosive |
| Type Of Seal On Screw-In Stud | Coating |
Provides secure directional air routing to miniature pneumatic cylinders and end-of-arm tooling in robotic assembly lines, allowing highly organized tube routing.
Prevents pneumatic cable kinking and mechanical interference in confined robotic workspaces by utilizing a 360-degree orientable elbow joint that adapts to moving components.
Delivers stable compressed air flows to pneumatic grippers, tensioners, and sealing jaws within high-throughput packaging equipment environments.
Eliminates pressure drops and tubing blow-outs during rapid, repetitive actuation cycles thanks to the high-alloy steel retaining claw that anchors the connection.
Acts as the physical interface for pilot air lines connecting directly to multi-station valve terminals and fluid control manifolds.
Removes the need for manual Teflon taping or liquid thread sealant during installation by using a factory pre-coated screw-in stud and NBR tubing seal for leak-proof operations.
