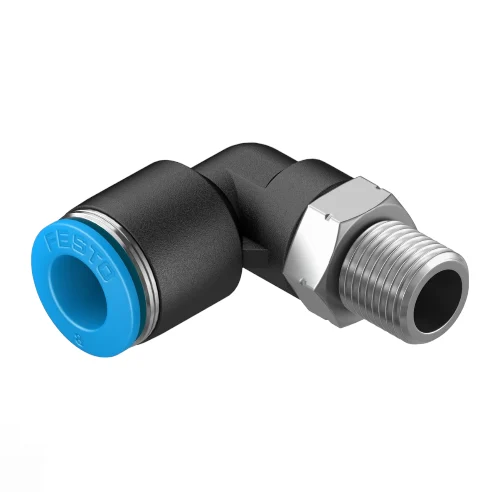

Festo QSL-1/8-8 L-Fitting R1/8 to 8mm

Technical Overview

The Festo QSL-1/8-8 (Part Number 153048) is a highly reliable L-shaped push-in pneumatic fitting designed for efficient compressed air and vacuum system integrations. Engineered with a durable PBT housing, it provides a 360-degree orientable R1/8 threaded connection and a reliable push-pull mechanism accommodating 8 mm outside diameter tubing. The fitting ensures leak-free fluid transmission over a broad ambient temperature range of -10 °C to 80 °C and supports dynamic system pressures from -0.95 bar (vacuum) up to a maximum of 14 bar. High-alloy stainless steel tubing clamp components guarantee secure hose retention under vibration, while the premium NBR seal allows compatible usage with compressed air according to ISO 8573-1:2010 standards.

Key Features

Push-pull principle mechanism ensures fast, tool-free connection and disconnection of 8 mm OD tubing [1.6].
360-degree orientable L-shape design with external hex allows for flexible alignment in tight pneumatic assemblies.
Robust PBT housing material and high-alloy stainless steel clamping component resist mechanical stress.
Designed for high reliability with operating pressures from -0.95 bar vacuum up to 14 bar.
Wide ambient temperature tolerance ranging from -10 °C to 80 °C for diverse industrial applications.

Technical Specification Matrix

Parameter	Value
Nominal Size	6 mm [1.6]
Tubing Insertion Depth	18.1 mm
Operating Pressure	-0.95 bar to 14 bar
Ambient Temperature	-10 °C to 80 °C
Pneumatic Connection 1	Male thread R1/8
Pneumatic Connection 2	For tubing O.D. 8 mm
Housing Material	PBT
Tubing Seal Material	NBR

Industrial Applications

1. Automated Pneumatic Actuation Assemblies

Used to supply pressurized air to pneumatic cylinders or semi-rotary drives where space restrictions require an L-shaped fluidic path [1.6].

Problem Solved

Resolves tight clearance constraints by utilizing a 360-degree orientable R1/8 thread, allowing flexible hose routing without tubing strain.

Pneumatic ActuationR1/8 Thread14 bar PressureOrientable Fitting

2. Industrial Vacuum Gripping Systems

Integrated into vacuum generator circuits for pick-and-place robotics requiring reliable and leak-proof negative pressure transmission.

Problem Solved

Maintains absolute vacuum integrity during high-speed robotic operations, fully supported by the -0.95 bar pressure capability and NBR seal.

Vacuum Gripping-0.95 barNBR SealPick-and-Place

3. Air Valve Manifold Connections

Serves as a robust distribution joint in centralized factory automation manifold blocks managing 8mm pneumatic tubing grids.

Problem Solved

Ensures fast, tool-free connection and disconnection of 8mm OD tubing while maintaining secure clamping via high-alloy stainless steel components.

Valve Manifolds8mm TubingPush-in FittingStainless Steel Clamp
