USD 8.96

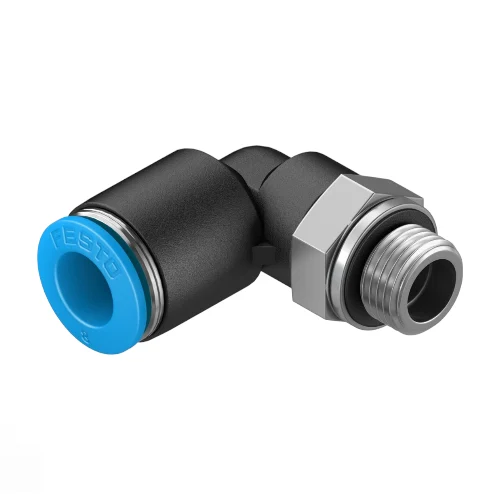

L-shaped push-in pneumatic fitting connecting 8mm OD tubing to a G1/8 male thread. 360° rotatable PBT housing handles -0.95 to 14 bar and -10°C to 80°C ranges.
The Festo 186119 (QSL-G1/8-8) is a premium industrial L-shaped pneumatic push-in fitting designed for quick and secure integration of 8mm outer diameter tubing to a G1/8 male threaded port. Operating on a highly reliable push-pull principle, it features a high-alloy stainless steel tube retaining claw and an NBR seal to ensure a leak-free connection across a broad pressure range from a -0.95 bar vacuum up to 14 bar. The durable polybutylene terephthalate (PBT) body is 360-degree orientable, allowing for optimized pneumatic line routing in confined spaces without placing stress on the tubing. With a wide operating temperature range of -10°C to 80°C, this fitting delivers exceptional versatility and robustness for both compressed air and water applications in modern automated fluid control systems.
| Parameter | Value |
|---|---|
| Nominal Size | 6 mm |
| Pneumatic Connection 1 | Male thread G1/8 |
| Pneumatic Connection 2 | For tubing O.D. 8 mm |
| Tubing Insertion Depth | 18.1 mm |
| Operating Pressure | -0.95 bar to 14 bar (temperature dependent) |
| Ambient Temperature | -10 °C to 80 °C |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Release Ring Material | Polyoxymethylene (POM) |
| Tubing Seal Material | NBR |
| Retaining Claw Material | High-alloy stainless steel |
| Nominal Tightening Torque | 7 Nm |
Providing reliable vacuum pressure handling down to -0.95 bar, this fitting securely connects 8mm suction cup lines on robotic arms. Its 360-degree rotatable housing prevents tubing from kinking during complex multiaxis motions.
Prevents pneumatic line tangling, fatigue, and vacuum pressure loss in highly dynamic robotic articulation.
Utilized within tightly packed control panels, the L-shaped geometry and rotatable G1/8 thread allow technicians to precisely route 8mm air distribution lines from solenoid valve manifolds without severe bending restrictions.
Resolves spatial constraints and severe tubing bend radiuses inside compact pneumatic manifolds.
Operating effectively with both compressed air and water, this corrosion-resistant (CRC 1) PBT fitting safely channels actuation fluids in packaging equipment subjected to varying temperatures (-10°C to 80°C) and moderate moisture.
Delivers a robust, leak-free fluid control connection capable of withstanding industrial water exposure and temperature cycling.
