USD 15.67

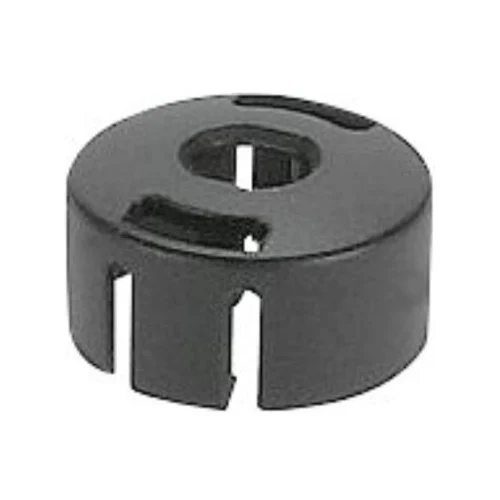

3 g reinforced-PA protective cap with CRC 0, LABS conformity, and RoHS-compliant construction for compatible valve interfaces.
3 g reinforced-PA protective cap with CRC 0, LABS conformity, and RoHS-compliant construction for compatible valve interfaces.
| Parameter | Value |
|---|---|
| Part number | 541010 |
| Model | VAMC-S6-CH |
| Product type | Cover cap |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Product weight | 3 g |
| Material cover cap | Reinforced PA |
| Material compliance | RoHS compliant |
| Physical Weight (kg) | 0.003 |
| Dimensions L x W x H (cm) | 0 x 0 x 0 |
Used to shield a compatible valve/manual override position on pneumatic manifolds where physical protection and contamination control are needed.
Prevents accidental actuation and helps protect the interface from dirt and handling damage.
Suitable for production environments that require PWIS/LABS-compatible components to reduce risk of paint-wetting and silicone contamination issues.
Supports cleanliness requirements in paint, coating, and high-finish assembly processes.
Appropriate for machines exposed to indoor industrial atmospheres where a small non-metallic cap is needed without adding corrosion risk.
Provides lightweight interface protection while minimizing corrosion-related maintenance concerns.
