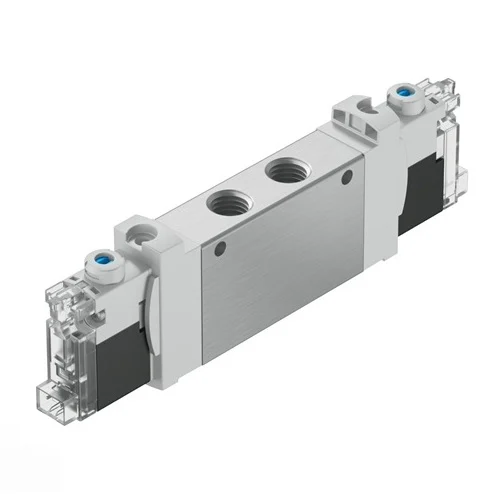

Festo VUVG-LK14-B52-T-G18-1H2L-W1-S 5/2 Bistable Solenoid Valve

Technical Overview

The Festo VUVG-LK14-B52-T-G18-1H2L-W1-S (Part Number 589288) is a highly efficient 5/2 bistable pneumatic solenoid valve engineered for advanced industrial automation. Featuring an electrically actuated piston slide mechanism with a soft sealing ring, it provides a substantial nominal flow rate of 660 l/min within an ultra-compact 14 mm valve size. Operating reliably on 24V DC control voltages and dynamic working pressures between 0.15 MPa and 0.7 MPa, this pilot-actuated valve utilizes standard G1/8 pneumatic working ports. It ensures precise bidirectional control for double-acting cylinders and pneumatic actuators, boasting an IP40 protection rating and UL recognition for versatile integration into manufacturing, robotics, and complex material handling systems.

Key Features

Space-saving 14 mm compact valve footprint designed for high-density manifold or direct inline integration.
5/2 bistable valve function ensures the pneumatic actuator position is reliably maintained even during electrical power loss.
High standard nominal flow rate of 660 l/min standardizes rapid actuator response times for high-speed machinery.
Compatible with standard 24V DC electrical control systems, PLCs, and relays.
Internally piloted electric actuation utilizing a highly reliable piston slide design with soft sealing principles.
Equipped with robust G1/8 pneumatic working ports for seamless compatibility with standardized pneumatic fittings.
UL recognized component (UL MH19482) offering an IP40 degree of environmental protection.

Technical Specification Matrix

Parameter	Value
Valve Function	5/2 bistable
Type of Actuation	Electric
Valve Size	14 mm
Standard Nominal Flow Rate	660 l/min
Pneumatic Working Port	G1/8
Operating Voltage	24V DC
Operating Pressure	0.15 MPa to 0.7 MPa (1.5 bar to 7.0 bar)
Design	Piston slide with sealing ring
Degree of Protection	IP40
Type of Piloting	Pilot actuated (Internal pilot air supply)
Sealing Principle	Soft
Exhaust-Air Function	With flow control option

Industrial Applications

1. Automated Packaging Lines

In high-speed packaging equipment, sorting and pushing mechanisms require fast, repeatable actuation to maintain throughput. The 5/2 bistable solenoid valve controls double-acting pneumatic cylinders efficiently using standardized 24V DC signals from the system PLC.

Problem Solved

Prevents pneumatic cylinders from losing their mechanical position if electrical power fluctuates or is temporarily cut, avoiding severe mechanical jams while delivering a high 660 l/min flow for aggressive cycle times.

Packaging AutomationPneumatic CylindersBistable ActuationHigh-Speed Sorting

2. Robotic End-of-Arm Tooling (EOAT)

Industrial robotic arms utilize pneumatic grippers, vacuum generators, and rotary actuators for material handling, requiring valves mounted as close to the point of use as possible to minimize pneumatic latency.

Problem Solved

The exceptionally compact 14 mm valve footprint allows for direct, localized installation on the robotic manipulator itself, drastically reducing air line lengths and maximizing the robot's dynamic payload capacity due to its lightweight profile.

RoboticsEnd-of-Arm ToolingPneumatic GrippersPayload Optimization

3. Conveyor Routing and Diverter Gates

Logistics and industrial conveyor systems utilize pneumatic diverters to change the routing of packages, totes, or products based on barcode scanner data or vision system inputs.

Problem Solved

The valve's ability to operate smoothly at varying line pressures (0.15 to 0.7 MPa) ensures strong and absolute routing gate actuation. Its internal piloting and soft sealing provide non-reversible flow control that strictly maintains diverter integrity under continuous 24/7 operation.

Conveyor RoutingDiverter GatesMaterial HandlingFlow Control
