$ 402.50
| Item | Specifications | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Number | HG-TC113 | |||||||||||||
| Part Number | HG-TC113 | |||||||||||||
| Products Name | Controller | |||||||||||||
| Product details | Slave unit / Wire-saving type | |||||||||||||
| Applicable regulations | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) | |||||||||||||
| Pollution degree | 2 | |||||||||||||
| Operating altitude | 2,000 m 6561.68 ft or less (Note) : Do not use or store in an environment that has been pressurized to an air pressure higher than the atmospheric pressure at 0 m. |
|||||||||||||
| Environmental resistance : Protection | IP40(IEC) | |||||||||||||
| Environmental resistance : Ambient temperature | -10 to +50 ℃ +14 to +122 ℉ (No dew condensation or icing allowed) (Note), Storage: -20 to +60 ℃ -4 to +140 ℉ (Note) : When slave units are connected to the master unit, the maximum sink current / source current of control output and ambient temperature vary depending on the number of connected slave units as shown below.
|
|||||||||||||
| Environmental resistance : Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | |||||||||||||
| Environmental resistance : Voltage withstandability | 1,000 V AC for one minute between all supply terminals connected together and enclosure | |||||||||||||
| Environmental resistance : Insulation resistance | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure | |||||||||||||
| Environmental resistance : Vibration resistance | 10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude (10 to 58 Hz), Maximum acceleration 49 m/s2 (58 to 150 Hz) in X, Y and Z directions for two hours each | |||||||||||||
| Environmental resistance : Shock resistance | 98m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each | |||||||||||||
| Material | Case: Polycarbonate, Cover: Polycarbonate, Switches: Polyacetal | |||||||||||||
| Cable | 0.2 mm2 2-core (brown and blue lead wires) / 0.15 mm2 7-core composite cable, 2 m 6.562 ft long | |||||||||||||
| Net weight | 60 g approx. | |||||||||||||

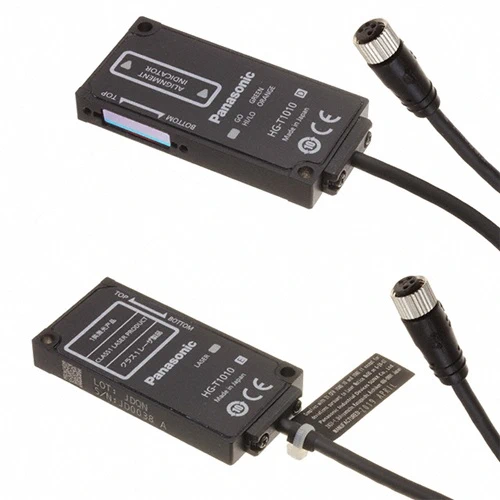

| Applicable sensor head | HG-T1010、HG-T1110 | |||||||||||||
| Maximum number of connectable controllers | Up to 15 slave units can be connected to a master unit. (Note) : When connected to a communication unit for digital displacement sensor, up to 14 slave units can be connected per master unit. |
|||||||||||||
| Supply voltage | 24 V DC ±10 %, including ripple 0.5 V (P-P) | |||||||||||||
| Current consumption | 100 mA or less (when sensor head is connected) (Note) : Current consumption does not include analog current output. |
|||||||||||||
| Sampling rate | 1 ms (standard sampling) / 0.5 ms (high-speed sampling) | |||||||||||||
| Average count (response time) | 1 time (2 ms), 2 times (3 ms), 4 times (5 ms), 8 times (9 ms), 16 times (17 ms), 32 times (33 ms), 64 times (65 ms), 128 times (129 ms), 256 times (257 ms), 512 times (513 ms), and 1,024 times (1,025 ms) switching type (Note) : Average count (response time) is for when the sampling cycle is set to 1 ms (standard sampling). Response times differ when the sampling cycle is set to 0.5 ms (high-speed sampling). |
|||||||||||||
| Display resolution | 1 μm 0.039 mil | |||||||||||||
| Display range | -199.999 to 199.999 mm -7.874 to 7.874 in | |||||||||||||
| Model |
|---|
