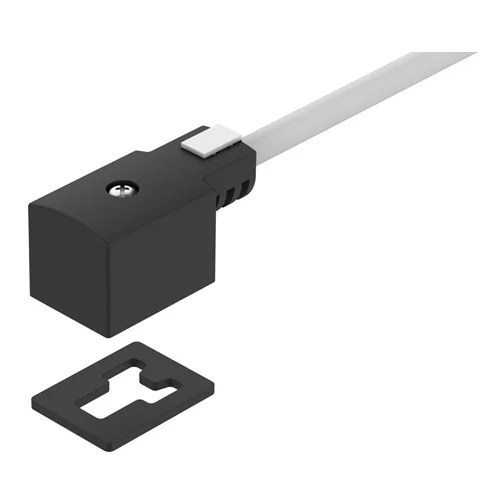

KMV-1-24DC-5-LED Festo Plug Socket With Cable

Technical Overview

The KMV-1-24DC-5-LED is a pre-assembled plug socket with a 5-meter cable designed for connecting solenoid valves. It features an integrated LED switching status indicator and offers reverse polarity protection for all electrical connections. With an IP67 degree of protection and a robust PC housing, it is built for reliable performance in industrial environments with operating temperatures ranging from -20 °C to 80 °C.

Key Features

Integrated LED switching status indication
Mounting on solenoid valve via M3 central screw
Reverse polarity protection for all electrical connections
Protective conductor connection available
IP67 degree of protection according to IEC 60529
LABS (PWIS) conformity to VDMA24364-B2-L
Corrosion resistance class CRC 1 (low corrosion stress)
PVC cable sheath and PC housing material

Technical Specification Matrix

Parameter	Value
Switching status indication	LED
Type of mounting	On solenoid valve via M3 central screw
Mounting position	optional
Product weight	320 g
Electrical connection	Socket Type B
Nominal operating voltage	DC 24 V
Reverse polarity protection	For all electrical connections
Protective conductor connection	Available
Cable length	5 m
Cable diameter	6 mm
Cable structure	3 x 0.75 mm²
Degree of protection	IP67 To IEC 60529
Ambient temperature	-20 °C ... 80 °C
CE mark (see declaration of conformity)	In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)	To UK RoHS instructions
LABS (PWIS) conformity	VDMA24364-B2-L
Corrosion resistance class	CRC 1 - Low corrosion stress
Material cable sheath	PVC
Material housing	PC
Material electrical contact	Bronze

Industrial Applications

1. Automated Packaging Line Valve Diagnostics

Implementing pre-wired illuminating sockets on pneumatic solenoid valves within high-speed packaging equipment to streamline electrical connection and status monitoring.

Problem Solved

Reduces machine downtime during faults by utilizing the integrated LED for instant visual confirmation of the 24V DC switching status, eliminating the need for manual multimeter probing on the manifold.

LED status indication24 V DCSocket Type BAutomated packagingSolenoid valve

2. Dusty Environment Material Conveying Systems

Deploying the plug sockets in indoor bulk material handling and conveying systems where fine dust and occasional moisture are prevalent.

Problem Solved

Prevents electrical shorts and connection failures caused by dust and moisture ingress, leveraging the IP67 degree of protection and durable PVC cable sheath while maintaining a secure M3 central screw mount.

IP67 degree of protectionPVC cable sheathM3 central screwDust-tight connectionMaterial handling

3. Cold Storage Facility Pneumatic Control

Connecting solenoid valves in sub-zero cold storage and frozen food distribution centers using temperature-resilient plug sockets.

Problem Solved

Overcomes connector embrittlement and electrical failure in freezing conditions by utilizing a PC housing and PVC cable rated for ambient temperatures down to -20 °C, while allowing hands-free visual troubleshooting via the LED.

-20 °C ambient temperaturePC housingBronze electrical contactCold storagePneumatic control
