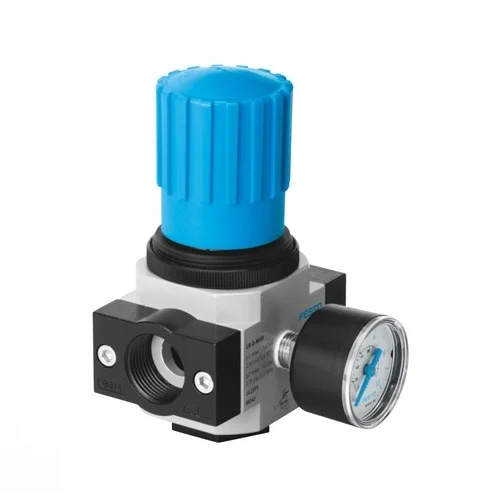

1. Factory Floor Branch Air Line Regulation for Automated Assembly
Operating as the primary branch regulator in automotive manufacturing facilities, this device steps down the high-pressure main shop air supply down to a consistent working pressure, feeding multiple downstream robotic welding and pneumatic assembly stations.
Problem SolvedPrevents pressure starvation and erratic pneumatic actuator behavior across the assembly line when multiple downstream automated stations draw high volumes of air simultaneously.
12500 l/min standard nominal flow ratePiloted piston regulator16 bar max operating pressureMaxi size
2. Main Feed Pressure Control for Heavy-Duty Pneumatic Presses
Regulates the main air supply to large-bore pneumatic cylinders used in metal stamping and forming presses. It delivers massive burst flows during the power stroke and handles exhaust back-pressures effectively during rapid cycle returns.
Problem SolvedSolves air starvation during high-speed, high-force mechanical actuation and actively mitigates destructive pressure spikes caused by sudden load reversals via rapid exhaustion.
Output pressure constant With secondary venting0.5 bar ... 7 bar pressure regulation rangeG1 pneumatic connection0.04 MPa max pressure hysteresis
3. Bulk Air Supply for Automated Palletizing and Vacuum Gripper Arrays
Feeds stable, high-volume compressed air to an array of heavy-duty vacuum ejectors and large pneumatic actuators on end-of-line packaging robots. It ensures the vacuum generators maintain optimal suction pressure to securely lift heavy payloads without starving the robot arm's pneumatic movement cylinders.
Problem SolvedEliminates dropped payloads and machine faults by ensuring that the extremely high instantaneous air demands of parallel vacuum generators do not deplete the localized line pressure.
12500 l/min standard nominal flow rateDie-cast zinc material housingNBR seals-10 °C ... 60 °C ambient temperature
