$ 141.45 – $ 356.50
| Item | Specifications | |||
| Product Number | LS-H91 | LS-H21 | LS-H91-A | LS-H92 |
| Part Number | LS-H91 | LS-H21 | LS-H91-A | LS-H92 |
| Regulatory compliance | EMC Directive, RoHS Directive | EMC Directive, RoHS Directive | EMC Directive, RoHS Directive | EMC Directive, RoHS Directive |
| Applicable amplifiers | LS-401(P), LS-401(P)-C2, LS-403 | LS-401(P), LS-401(P)-C2, LS-403 | LS-401(P), LS-401(P)-C2, LS-403 | LS-401(P), LS-401(P)-C2, LS-403 |
| Sensing range:U-LG mode | 0.1 to 7 m 0.328 to 22.966 ft (Note) The sensing range is the value for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m 0.328 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity. |
30 to 1,000 mm 1.181 to 39.370 in | 0.1 to 5 m 0.328 to 16.404 ft (Note) The sensing range is the value for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m 0.328 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity. |
0.2 to 30 m 0.656 to 98.425 ft (Note) The sensing range is the value for the RF-230 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.2 m 0.656 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity. |
| Sensing range:STD mode | 0.1 to 5 m 0.328 to 16.404 ft (Note) The sensing range is the value for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m 0.328 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity. |
30 to 500 mm 1.181 to 19.685 in | 0.1 to 3 m 0.328 to 9.843 ft (Note) The sensing range is the value for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m 0.328 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity. |
0.2 to 20 m 0.656 to 65.617 ft (Note) The sensing range is the value for the RF-230 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.2 m 0.656 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity. |
| Sensing range:FAST mode | 0.1 to 3 m 0.328 to 9.843 ft (Note) The sensing range is the value for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m 0.328 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity. |
30 to 300 mm 1.181 to 11.811 in | 0.1 to 1 m 0.328 to 3.281 ft (Note) The sensing range is the value for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m 0.328 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity. |
0.2 to 10 m 0.656 to 32.808 ft (Note) The sensing range is the value for the RF-230 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.2 m 0.656 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity. |
| Sensing range:H-SP mode | 0.1 to 3 m 0.328 to 9.843 ft (Note) The sensing range is the value for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m 0.328 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity. |
30 to 300 mm 1.181 to 11.811 in | 0.1 to 1 m 0.328 to 3.281 ft (Note) The sensing range is the value for the RF-330 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.1 m 0.328 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity. |
0.2 to 10 m 0.656 to 32.808 ft (Note) The sensing range is the value for the RF-230 reflector. In addition, the sensing range is the possible setting range for the reflector. The sensor can detect an object less than 0.2 m 0.656 ft away. Note that if there are white papers or specular objects near the sensor head, reflected light from these objects may be received. In such cases, use the M.G.S. function of the amplifier unit to change the response time or incident light sensitivity. |
| Operation indicator | Orange LED (lights up when the amplifier output is ON) | Orange LED (lights up when the amplifier output is ON) | Orange LED (lights up when the amplifier output is ON) | Orange LED (lights up when the amplifier output is ON) |
| Laser emission indicator | Green LED (lights up during laser emission) | Green LED (lights up during laser emission) | Green LED (lights up during laser emission) | Green LED (lights up during laser emission) |
| Spot-shape adjuster | – | Multi-turn adjuster | – | – |
| Protection | IP40 (IEC) | IP40 (IEC) | IP40 (IEC) | IP40 (IEC) |
| Ambient temperature | -10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage: -20 to +70 ℉ |
-10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage: -20 to +70 ℉ |
-10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage: -20 to +70 ℉ |
-10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage: -20 to +70 ℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | 35 to 85 % RH, Storage: 35 to 85 % RH | 35 to 85 % RH, Storage: 35 to 85 % RH | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face | Incandescent light: 3,000 lx or less at the light-receiving face | Incandescent light: 3,000 lx or less at the light-receiving face | Incandescent light: 3,000 lx or less at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
1,000 V AC for one min. between all supply terminals connected together and enclosure | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 500 Hz frequency, 1.5 mm 0.059 in (10 G max.) double amplitude in X, Y and Z directions for two hours each | 10 to 500 Hz frequency, 1.5 mm 0.059 in (10 G max.) double amplitude in X, Y and Z directions for two hours each | 10 to 500 Hz frequency, 1.5 mm 0.059 in (10 G max.) double amplitude in X, Y and Z directions for two hours each | 10 to 500 Hz frequency, 1.5 mm 0.059 in (10 G max.) double amplitude in X, Y and Z directions for two hours each |
| Shock resistance | 100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each | 100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each | 100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each | 100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each |
| Emitting element:IEC / JIS / GB standards conforming type | Red semiconductor laser, Class 2 (IEC / JIS / GB) (Max. output: 3 mW Peak emission wavelength: 655 nm 0.026 mil) |
Red semiconductor laser, Class 2 (IEC / JIS / GB) (Max. output: 3 mW Peak emission wavelength: 655 nm 0.026 mil) |
Red semiconductor laser, Class 2 (IEC / JIS / GB) (Max. output: 3 mW Peak emission wavelength: 655 nm 0.026 mil) |
Red semiconductor laser, Class 2 (IEC / JIS / GB) (Max. output: 3 mW Peak emission wavelength: 655 nm 0.026 mil) |
| Emitting element:FDA / IEC / JIS standards conforming type | Red semiconductor laser, Class 2 (FDA / IEC / JIS) (Max. output: 3 mW Peak emission wavelength: 655 nm 0.026 mil) (Note) This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 50, dated July 26, 2001, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration). For details, refer to the Laser Notice No. 50. |
Red semiconductor laser, Class 2 (FDA / IEC / JIS) (Max. output: 3 mW Peak emission wavelength: 655 nm 0.026 mil) (Note) This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 50, dated July 26, 2001, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration). For details, refer to the Laser Notice No. 50. |
Red semiconductor laser, Class 1 (FDA / IEC / JIS) (Max. output: 1 mW Peak emission wavelength: 655 nm 0.026 mil) (Note) This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 50, dated July 26, 2001, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration). For details, refer to the Laser Notice No. 50. |
Red semiconductor laser, Class 2 (FDA / IEC / JIS) (Max. output: 3 mW Peak emission wavelength: 655 nm 0.026 mil) (Note) This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 50, dated July 26, 2001, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration). For details, refer to the Laser Notice No. 50. |
| Material | Enclosure: PBT (Mounting part: PEI) Lens cover: Acrylic |
Enclosure: PBT (Mounting part: PEI) Lens cover: Acrylic |
Enclosure: PBT (Mounting part: PEI) Lens cover: Acrylic |
Enclosure: PBT (Mounting part: PEI) Lens cover: Acrylic |
| Cable | 0.1 mm2, single core two parallel shielded cables, 2 m 6.562 ft long (Connector for amplifier attached) (Note) Cable cannot be extended. |
0.1 mm2, single core two parallel shielded cables, 2 m 6.562 ft long (Connector for amplifier attached) (Note) Cable cannot be extended. |
0.1 mm2, single core two parallel shielded cables, 2 m 6.562 ft long (Connector for amplifier attached) (Note) Cable cannot be extended. |
0.1 mm2, single core two parallel shielded cables, 2 m 6.562 ft long (Connector for amplifier attached) (Note) Cable cannot be extended. |
| Weight | Net weight: 30 g approx Gross weight: 45 g approx |
Net weight: 30 g approx Gross weight: 40 g approx |
Net weight: 30 g approx Gross weight: 45 g approx |
Net weight: 30 g approx Gross weight: 40 g approx |
| Accessory | RF-330(Reflector): 1 pc. Warning label: 1 set (Labels are written in Japanese, English and Chinese for compliance with various standards.) |
Warning label: 1 set (Labels are written in Japanese, English and Chinese for compliance with various standards.) |
RF-330(Reflector): 1 pc. Explanation label: 1 set (Labels are written in Japanese and Chinese for compliance with various standards.) |
RF-230(Reflector): 1 pc. Warning label: 1 set (Labels are written in Japanese, English and Chinese for compliance with various standards.) |

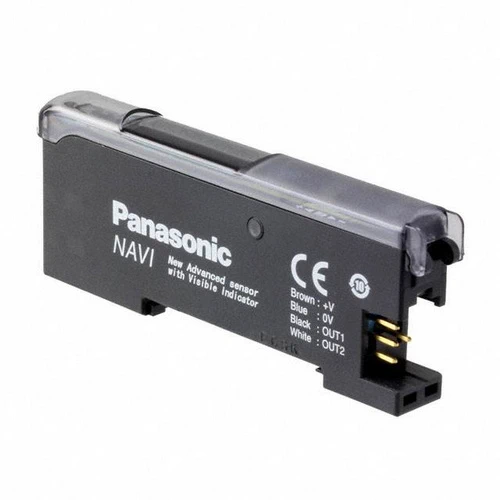

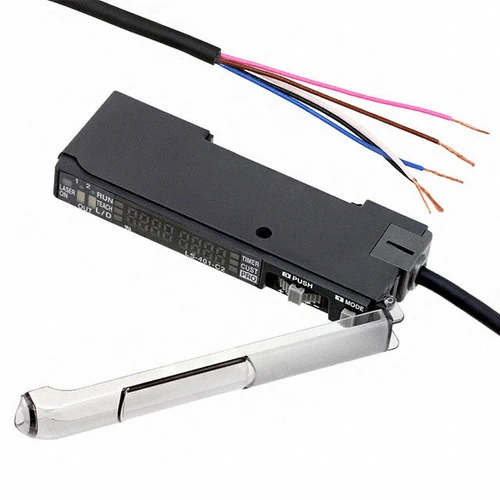

| Product Number | LS-401-C2 | LS-403 |
| Part Number | LS-401-C2 | LS-403 |
| Products Name | Digital Laser Sensor | Digital Laser Sensor |
| Product details | Amplifier (Cable type) | Amplifier (Connector type) |
| The price of the product | Please contact our office | Please contact our office |
| Operation indicator | Orange LED (lights up when output 1 and output 2 are ON) | Orange LED (lights up when output 1 and output 2 are ON) |
| Laser emission indicator | Green LED (lights up during laser emission) | Green LED (lights up during laser emission) |
| Ambient temperature | -10 to +55 ℃ +14 to +131 ℉ (If 4 to 7 units are mounted close together: -10 to +50 ℃ +14 to +122 ℉ , if 8 to 16 units are mounted close together: -10 to +45 ℃ +14 to +113 ℉ ) | -10 to +55 ℃ +14 to +131 ℉ (If 4 to 7 units are mounted close together: -10 to +50 ℃ +14 to +122 ℉ , if 8 to 16 units are mounted close together: -10 to +45 ℃ +14 to +113 ℉ ) |
| (No dew condensation or icing allowed), | (No dew condensation or icing allowed), | |
| Storage: -20 to +70 ℃ -4 to +158 ℉ | Storage: -20 to +70 ℃ -4 to +158 ℉ | |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Voltage withstandability | 1,000 V AC for one min. | 1,000 V AC for one min. |
| between all supply terminals connected together and enclosure | between all supply terminals connected together and enclosure | |
| Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 150 Hz frequency, 0.75 mm double amplitude or maximum acceleration 49 m/s2 in X, Y, and Z direction for 2 hours each. | 10 to 150 Hz frequency, 0.75 mm double amplitude or maximum acceleration 49 m/s2 in X, Y, and Z direction for 2 hours each. |
| Shock resistance | 98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each | 98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each |
| Material | Enclosure: Heat-resistant ABS | Enclosure: Heat-resistant ABS |
| Transparent cover: Polycarbonate | Transparent cover: Polycarbonate | |
| Push button switch: Acrylic | Push button switch: Acrylic | |
| Jog switch: ABS | Jog switch: ABS | |
| Cable | 0.15 mm2 5-core cabtyre cable, 2 m 6.562 ft long | – |
| Weight | Net weight: 65 g approx | (Note) The cable is not supplied as an accessory. Be sure to use the optional quick-connection cables given below. |
| Gross weight: 75 g approx | Main cable (4-core): CN-74-C1 (cable length 1 m 3.281 ft), CN-74-C2 (cable length 2 m 6.562 ft), CN-74-C5 (cable length 5 m 16.404 ft) | |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less | Sub cable (2-core): CN-72-C1 (cable length 1 m 3.281 ft), CN-72-C2 (cable length 2 m 6.562 ft), CN-72-C5 (cable length 5 m 16.404 ft) |
| Current consumption | Normal operation: 950 mW or less (Current consumption 40 mA or less at 24 V supply voltage) | Net weight: 15 g approx |
| ECO mode: 780 mW or less (Current consumption 33 mA or less at 24 V supply voltage) | Gross weight: 20 g approx | |
| Outputs(Output 1, Output 2) | NPN open-collector transistor | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| – Maximum sink current: 100 mA (Note) | Normal operation: 950 mW or less (Current consumption 40 mA or less at 24 V supply voltage) | |
| – Applied voltage: 30 V DC or less (between output and 0 V) | ECO mode: 780 mW or less (Current consumption 33 mA or less at 24 V supply voltage) | |
| – Residual voltage: 1.5 V or less [at 100 mA (Note) sink current] | NPN open-collector transistor | |
| (Note) 50 mA if 5 to 8 connector type amplifiers are connected in cascade , and 25 mA if 9 to 16 connector type amplifiers are connected in cascade. | – Maximum sink current: 50 mA (Note) | |
| Outputs(Output 1, Output 2):Output operation | Selectable either Light-ON or Dark-ON, with jog switch | – Applied voltage: 30 V DC or less (between output and 0 V) |
| Outputs(Output 1, Output 2):Short-circuit protection | Incorporated | – Residual voltage: 1.5 V or less [at 50 mA (Note) sink current] |
| Response time | 80 micro s or less (H-SP), 150 micro s or less (FAST), 500 micro s or less (STD), 4 ms or less (U-LG) selectable with jog switch | (Note) 25 mA if 5 to 8 connector type amplifiers are connected in cascade , and 25 mA if 9 to 16 connector type amplifiers are connected in cascade. |
| External input(Laser emission halt Full-auto teaching / Limit teaching) | NPN non-contact input | Selectable either Light-ON or Dark-ON, with jog switch |
| – Signal condition | Incorporated | |
| High: +5 V to +V DC or open, Low: 0 to +2 V DC (source current 0.5 mA or less) | 80 micro s or less (H-SP), 150 micro s or less (FAST), 500 micro s or less (STD), 4 ms or less (U-LG) selectable with jog switch | |
| – Input impedance: 10 kOhm approx. | – | |
| Select indicator | Yellow LED | Yellow LED |
| (lights up when either output 1 or output 2 is selected) | (lights up when either output 1 or output 2 is selected) | |
| MODE indicator | RUN: Green LED | RUN: Green LED |
| TEACH, L/D, TIMER, CUST, PRO: Yellow LED | TEACH, L/D, TIMER, CUST, PRO: Yellow LED | |
| Digital display | 4 digit (green) + 4 digit (red) LED display | 4 digit (green) + 4 digit (red) LED display |
| Sensitivity setting | Normal mode: 2-level teaching / Limit teaching / Full-auto teaching / Manual adjustment | Normal mode: 2-level teaching / Limit teaching / Full-auto teaching / Manual adjustment |
| Window comparator mode: Teaching (1-level, 2-level, 3-level) / Manual adjustment | Window comparator mode: Teaching (1-level, 2-level, 3-level) / Manual adjustment | |
| Hysteresis mode: Teaching (1-level, 2-level, 3-level) / Manual adjustment | Hysteresis mode: Teaching (1-level, 2-level, 3-level) / Manual adjustment | |
| Differential mode: 5-level settings | Differential mode: 8-level settings | |
| Fine sensitivity adjustment function | Incorporated | Incorporated |
| Timer function | Incorporated with variable ON-delay / OFF-delay / ONE SHOT timer, switchable either effective or ineffective. | Incorporated with variable ON-delay / OFF-delay / ONE SHOT timer, switchable either effective or ineffective. |
| Timer function:Time | 1 to 9,999 ms | 0.5 to 9,999 ms |
| Automatic Interference prevention function | Incorporated | Incorporated |
| [Up to four sets of sensor heads can be mounted close together. (However, disabled when in H-SP mode)] | [Up to four sets of sensor heads can be mounted close together. (Up to two sets when in H-SP mode)] | |
| Cable extension | Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. | Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. |

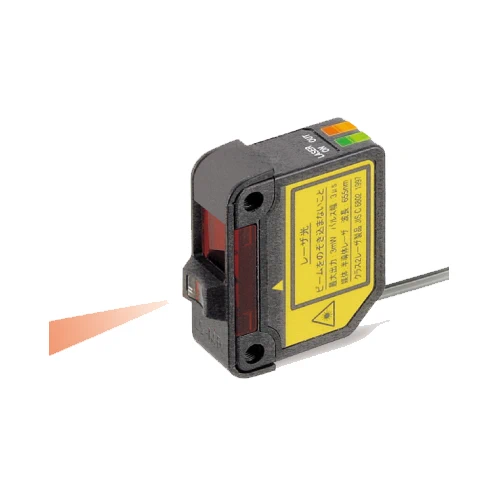

| Product Number | LS-H22 |
|---|---|
| Part Number | LS-H22 |
| Products Name | Digital Laser Sensor |
| Product details | Sensor head (Diffuse reflective type) |
| The price of the product | Please contact our office |
| Applicable amplifiers | LS-401(P), LS-401(P)-C2, LS-403 |
| Sensing range:U-LG mode | 30 to 1,000 mm 1.181 to 39.370 in |
| Sensing range:STD mode | 30 to 500 mm 1.181 to 19.685 in |
| Sensing range:FAST mode | 30 to 300 mm 1.181 to 11.811 in |
| Sensing range:H-SP mode | 30 to 300 mm 1.181 to 11.811 in |
| Operation indicator | Orange LED (lights up when the amplifier output is ON) |
| Laser emission indicator | Green LED (lights up during laser emission) |
| Spot-shape adjuster | Multi-turn adjuster |
| Protection | IP40 (IEC) |
| Ambient temperature | -10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage: -20 to +70 ℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 500 Hz frequency, 1.5 mm double amplitude or maximum acceleration 98 m/s2 in X, Y, and Z direction for 2 hours each. |
| Shock resistance | 98 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each |
| Emitting element:IEC / EN / JIS / GB / KS standards conforming type | Red semiconductor laser, Class 2 (IEC / EN / JIS / GB / KC) (Max. output: 3 mW Peak emission wavelength: 655 nm 0.026 mil) |
| Emitting element:FDA / IEC / EN / JIS standards conforming type | Red semiconductor laser, Class 2 (FDA / IEC / EN / JIS) (Max. output: 3 mW Peak emission wavelength: 655 nm 0.026 mil) (Note) This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 56, dated July 26, 2001, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration). For details, refer to the Laser Notice No. 56. |
| Material | Enclosure: PBT (Mounting part: PEI) Lens cover: Acrylic |
| Cable | 0.1 mm2, single core two parallel shielded cables, 2 m 6.562 ft long (Connector for amplifier attached) (Note) Cable cannot be extended. |
| Weight | Net weight: 30 g approx Gross weight: 50 g approx |
| Accessory | Warning label 1 set (IEC / EN / JIS / GB / KS) |
| Weight | N/A |
|---|
