1. Automotive Body Assembly: Heavy Welding Clamp Actuation

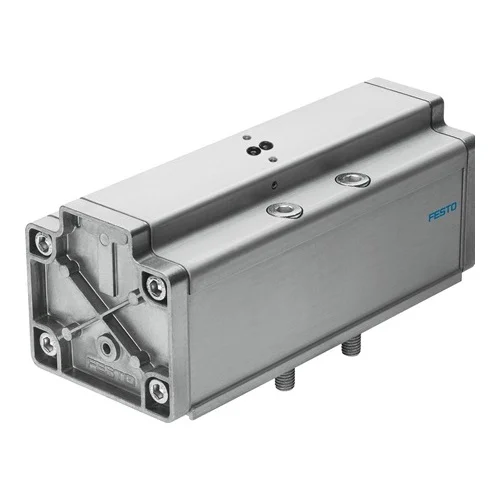

The Festo MDH-5/2-3/4-D-4 controls large bore double-acting cylinders used to actuate heavy-duty welding fixtures. The massive 6000 l/min standard nominal flow rate ensures that large clamping cylinders engage and retract rapidly, minimizing assembly cycle time. The 5/2-way monostable design guarantees that the clamp safely retracts to its home position via the pneumatic spring reset in the event of an electrical power loss, preventing collision damage from moving robots. Its IP65 degree of protection shields the internal components from weld spatter, coolants, and industrial shop floor dust.
Problem SolvedAutomotive spot welding requires high clamping forces and rapid cycle times. Standard pneumatic valves bottleneck the production speed of large cylinders, and power failures can leave clamps dangerously locked on a moving assembly line.
6000 l/min standard nominal flow rate5/2-way, monostablePneumatic spring resetIP65 degree of protection
2. Timber Processing: Log Kicker and High-Speed Sorting Gate Control
Deployed on a standardized Sub-base size 4 to ISO 5599-1, this valve directs compressed air to oversized pneumatic ejection cylinders in a sawmill log sorting system. Operating reliably at elevated system pressures up to 16 bar, the valve leverages its large 18 mm nominal size and internal pilot air supply to rapidly flood the cylinders, instantly kicking heavy logs into designated bins. The rugged aluminum housing and NBR seals withstand the harsh, vibrating environment, while the robust piston gate design guarantees reliable switching even when utilizing lubricated compressed air.
Problem SolvedHeavy timber sorting requires immense instant pneumatic force to divert multi-ton logs at high conveyor speeds, necessitating a mechanically robust, high-pressure valve that is easily swappable via standardized base plates.
Sub-base size 4 to ISO 5599-116 bar operating pressurePiston gate valveLubricated operation possibleMaterial housing: Aluminium
3. Bulk Material Handling: Pneumatic Hopper Discharge Gate Actuation
This electrically actuated directional control valve is integrated into bulk material silos to operate heavy pneumatic slide gates. The valve utilizes its high flow capacity to overcome the static friction and dead weight of cement, ores, or grain aggregates pressing down on the gate. By utilizing the built-in exhaust-air function with a flow control option, plant engineers can precisely tune the opening and closing speed of the gate to meter out bulk materials accurately. The soft sealing principle prevents air leakage in dusty environments, while the monostable function ensures the gate slams shut automatically to prevent spills if plant power drops.
Problem SolvedSilo slide gates frequently jam under the massive weight of bulk aggregates. Process metering requires highly adjustable cylinder speeds, and power outages risk catastrophic material dumping if the gate remains in the open state.
Type of actuation: ElectricExhaust-air function: With flow control optionSealing principle: SoftPilot air supply: Internal
