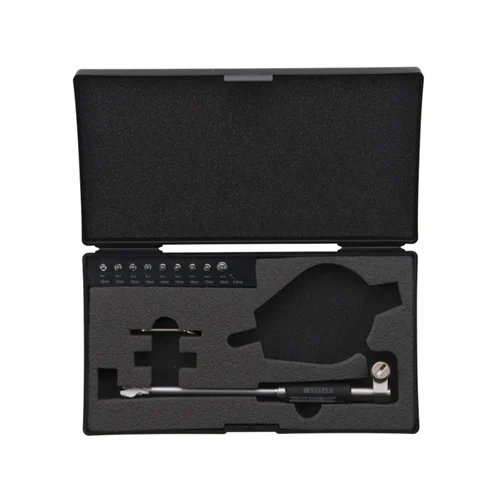

Mechanical bore gauge body for 10-18.5mm internal diameter measurements. Features a 2-point self-centering design with carbide-tipped contact points.
Mechanical bore gauge body for 10-18.5mm internal diameter measurements. Features a 2-point self-centering design with carbide-tipped contact points.
| Parameter | Value |
|---|---|
| Measuring Range | 10 - 18.5 mm |
| Accuracy | ± 5 µm |
| Indication Stability | 2 µm |
| Measuring Depth | 100 mm |
| Stem Diameter | 8 mm |
| Measuring Force | ≤ 2 N |
| Stroke of Contact Point | 0.6 mm |
| Number of Anvils | 9 (Alloy Steel, Carbide-tipped) |
| Number of Spacers | 1 (0.5 mm thick) |
| Measurement System | Metric |
| Contact Type | 2-Point Self-Centering Bridge |
| Indicator Included | No (Sold Separately) |
| Physical Weight (kg) | 0.31 |
| Dimensions L x W x H (cm) | 24.13 x 13.97 x 5.08 |
Utilizing the 2-point contact system to check the precise inner diameter of valve guides and minor engine cylinders within the 10-18.5 mm range during automotive manufacturing quality control.
Detects ovality, taper, and concentricity errors down to ±5 µm accuracy, preventing engine valve seizure or compression loss in high-tolerance assemblies.
Verifying the tight tolerances of hydraulic spool sleeves and valve blocks where small, deep bores require highly accurate dimension control.
Allows quality inspectors to verify bore diameters up to 100 mm deep using a lightweight manual gauge with carbide-tipped anvils that resist frictional wear from hardened hydraulic steel alloys.
Verifying bearing housing IDs and journals prior to press-fit installation of micro-bearings on aircraft assembly floors.
Eliminates thermal expansion errors during prolonged manual inspection. The 50% heat-shielding hollow grip ensures that human hand warmth does not expand the probe stem, maintaining 2 µm repeatability.
