$ 888.49

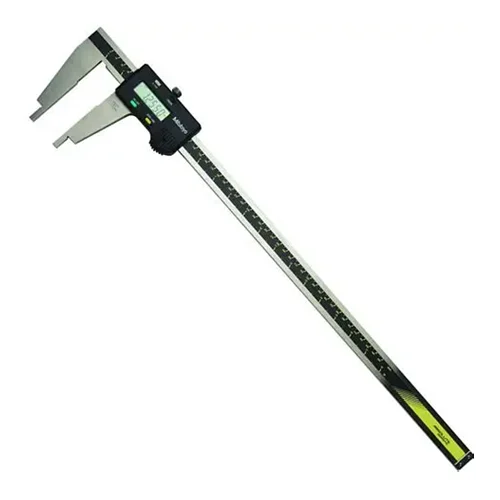

Mitutoyo 550-205-10 ABS Digimatic caliper with nib-style jaws for precise internal and step measurements up to 600 mm. Accurate, reliable, professional-grade.
The Mitutoyo 550-205-10 Absolute Digimatic Caliper with nib-style jaws is a professional-grade digital caliper engineered for precise internal and step measurements over an extended 0–600 mm range. Manufactured by Mitutoyo, this model addresses the difficulty of measuring narrow grooves, recessed features, and complex internal geometries that conventional calipers cannot reach effectively. Its ABSOLUTE linear encoder system maintains a fixed reference point, delivering reliable readings immediately after power-on and ensuring stable accuracy in demanding industrial measurement tasks.
Designed for real workshop and inspection environments, the Mitutoyo 550-205-10 enhances measurement confidence and operational efficiency. The slim nib-style jaws allow accurate probing of internal slots, undercuts, and step features without forcing or misalignment. ABSOLUTE Digimatic technology minimizes human error by removing repeated zero-setting, saving time during repetitive inspections. For machining, tooling, and quality assurance of large components, this caliper supports consistent decision-making, reduces inspection variability, and helps maintain tight tolerances throughout production and verification processes.
The Mitutoyo 550-205-10 Absolute Digimatic Caliper with nib-style jaws is chosen when standard calipers are no longer sufficient for complex internal measurements. Designed by Mitutoyo, this model combines extended 0–600 mm measuring capacity with slim nib-style jaws that reach into narrow slots and recessed features. Its ABSOLUTE measurement system ensures instant, reliable readings without repeated zero-setting, making it an excellent tool for professionals who demand accuracy, speed, and confidence when inspecting large or intricate components.
This caliper solves the persistent challenge of accurately measuring internal features that are difficult or impossible to access with conventional jaw designs. In applications involving deep grooves, narrow steps, or internal recesses on large parts, measurement errors and inconsistent results are common. The Mitutoyo 550-205-10 overcomes these issues by providing stable digital readings from startup, precise jaw geometry for confined spaces, and dependable repeatability, helping users avoid rework, reduce inspection time, and maintain tight dimensional control in real production environments.
When machining large housings, frames, or plates, internal grooves and narrow slots often determine fit and function. The nib-style jaws reach into confined features that standard caliper jaws cannot access cleanly. This helps inspectors confirm groove width, step depth reference points, and critical internal dimensions without forcing the tool, improving repeatability and reducing the risk of false rejects during incoming or in-process inspection.
Tooling components frequently rely on step dimensions for alignment, clamping height, and assembly positioning. This caliper supports reliable step checks across long spans up to 600 mm, making it practical for larger fixtures and die sets. The ABS measurement system reduces workflow interruptions because readings remain stable after power-on, helping technicians work faster while maintaining tight tolerance control during build, adjustment, and final validation.
In maintenance environments, technicians must measure wear-related changes in parts such as guides, rails, and machine structures where access is limited and dimensions can be long. The nib-style jaws make it easier to measure recessed internal features and worn steps without dismantling assemblies unnecessarily. Fast, consistent digital readings support quicker diagnostics, enabling maintenance teams to decide whether components are within acceptable limits or require repair or replacement.
Fabricated structures and assemblies often require dimensional confirmation before welding, bolting, or final fit-up. With its extended measuring range, this caliper is well suited for verifying internal clearances, step offsets, and feature spacing on larger components. By reducing re-zero steps and minimizing measurement handling errors, it helps QA teams maintain consistent measurement practices, preventing downstream fit issues and reducing rework during assembly.
| Feature | Details | Benefit |
|---|---|---|
| Measuring Range | 0–600 mm | Suitable for large components and long-span measurements |
| Jaw Type | Nib-style jaws | Enables accurate measurement of narrow grooves, slots, and recessed internal features |
| Measurement Technology | ABSOLUTE Digimatic linear encoder | Eliminates cumulative error and removes the need for repeated zero-setting |
| Resolution | 0.01 mm | Supports fine dimensional verification and tight tolerance control |
| Accuracy | High-precision digital measurement (model-specific tolerance) | Ensures dependable results for inspection and quality assurance |
| Display | Large LCD digital display | Improves readability and reduces operator misinterpretation |
| Power System | Battery-powered Digimatic system | Stable performance with low power consumption |
| Data Output | Digimatic output capability | Allows easy connection to data collection and SPC systems |
| Construction | Hardened stainless steel frame | High durability in workshop and inspection environments |
| Measurement Functions | Inside, step, and comparative measurement | One tool supports multiple inspection tasks |
| Repeatability | Excellent repeat measurement stability | Improves consistency across operators and inspection cycles |
| Application Focus | Internal features on large or complex parts | Reduces rework and inspection time in real production settings |
