Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.

Mitutoyo Dial Gauge Feature:

Digital/Analog:	Analog
Inch-Metric:	Metric
Range:	10 mm
Range per rev.:	1 mm
Graduation:	0.01 mm
Graduation:	0,01 mm
Measuring force:	0,4-1,4
MPE any 1/10 revolution:	5 µm
MPE any 1/2 revolution:	9 µm
MPE any 1 revolution:	10 µm
MPE measuring range:	13 µm
H MPE (Hysteresis):	3 µm
R MPE (Repeatability):	3 µm
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:	Yes
Mass:	144 g
fu:	3 µm
Functions:	ISO type

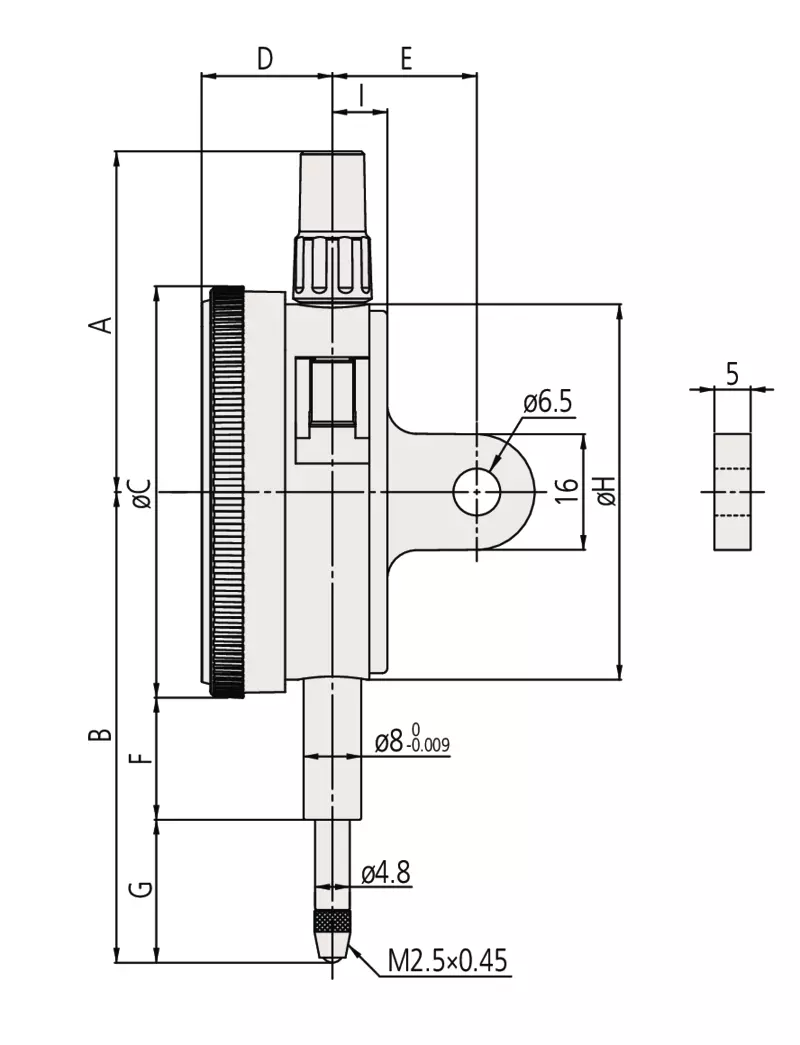

Mitutoyo Dial Gauge Dimensions

A:	47.2 mm
B:	65.2 mm
C:	57 mm
D:	18.1 mm
E:	20 mm
F:	16.9 mm
G:	19.8 mm
H:	52 mm
I:	7.6 mm

Variants

All products of product family Series 2:

	Dial Gauge, Lug Back, ISO Type
	5mm, 0,01mm
	Mitutoyo Dial Gauge Part Number: 1044A
	More Info
	Dial Gauge, ISO Type
	Back Plunger Design, 5mm, 0,01mm
	Mitutoyo Dial Gauge Part Number: 1160A
	More Info
	Dial Gauge, Lug Back, ISO Type
	Jewelled Bearing, 2,5mm, 0,01mm
	Mitutoyo Dial Gauge Part Number: 1911A-10
	More Info
	Dial Gauge, Lug Back, ISO Type
	10mm, 0,01mm
	Mitutoyo Dial Gauge Part Number: 2046A
	More Info
	Dial Gauge, Lug Back, ISO Type
	IP64, 10mm, 0,01mm
	Mitutoyo Dial Gauge Part Number: 2046A-60
	More Info
	Dial Gauge, Lug Back, ISO Type
	20mm, 0,01mm
	Mitutoyo Dial Gauge Part Number: 2050A
	More Info
	Dial Gauge, Lug Back, ISO Type
	30mm, 0,01mm
	Mitutoyo Dial Gauge Part Number: 2052A
	More Info
	Dial Gauge, Lug Back, ISO Type
	Jewelled Bearing, Shockproof, 1mm, 0,001mm
	Mitutoyo Dial Gauge Part Number: 2109A-10
	More Info
	Dial Gauge, Lug Back, ISO Type
	Jewelled Bearing, Shockproof, 2mm, 0,001mm
	Mitutoyo Dial Gauge Part Number: 2113A-10
	More Info
	Dial Gauge, Lug Back, ISO Type
	Jewelled Bearing, 5mm, 0,001mm
	Mitutoyo Dial Gauge Part Number: 2119A-10
	More Info
	Dial Gauge, Lug Back, ISO Type
	Shockproof, 10mm, 0,01mm
	Mitutoyo Dial Gauge Part Number: 2046A-09
	For more : Contact us
	Dial Gauge, Flat Back, ISO Type
	Shockproof, 10mm, 0,01mm
	Mitutoyo Dial Gauge Part Number: 2046AB-09
	For more : Contact us
	Dial Gauge, Flat Back, ISO Type
	IP64, 10mm, 0,01mm
	Mitutoyo Dial Gauge Part Number: 2046AB-60
	For more : Contact us
	Dial Gauge, Lug Back, ISO Type
	Jeweled Bearing, 10mm, 0,01mm
	Mitutoyo Dial Gauge Part Number: 2310A-10
	For more : Contact us
	Dial Gauge, Flat Back, ISO Type
	Jeweled Bearing, 10mm, 0,01mm
	Mitutoyo Dial Gauge Part Number: 2310AB-10
	For more : Contact us
	Dial Gauge, Lug Back, ISO Type
	Reverse Dial Face, 10mm, 0,01mm
	Mitutoyo Dial Gauge Part Number: 2902A
	For more : Contact us
	Dial Gauge, Flat Back, ISO Type
	Reverse Dial Face, 10mm, 0,01mm
	Mitutoyo Dial Gauge Part Number: 2902AB
	For more : Contact us
	Dial Gauge, Lug Back, ISO Type
	10mm, 0,01mm
	Mitutoyo Dial Gauge Part Number: 2047A
	For more : Contact us
	Dial Gauge, Flat Back, ISO Type
	10mm, 0,01mm
	Mitutoyo Dial Gauge Part Number: 2047AB
	For more : Contact us
