Original price was: $ 149.38.$ 117.48Current price is: $ 117.48.
A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
| Range: |
0,2
|
| Graduation: |
0.002 mm
|
| Graduation: |
0.002
|
| MPE any 10 scale divisions: |
2 µm
|
| MPE any 1/2 revolution: |
3 µm
|
| MPE measuring range: |
3 µm
|
| H MPE (Hysteresis): |
2 µm
|
| R MPE (Repeatability): |
1 µm
|
| Measuring force: |
0,01 – 0,3 N
|
| Carbide stylus tip ø2 mm No.: |
103011
|
| Contact point: |
Thread M 1.7 x 0.35
|
| Mass: |
45 g
|
| Functions: |
Basic set
|

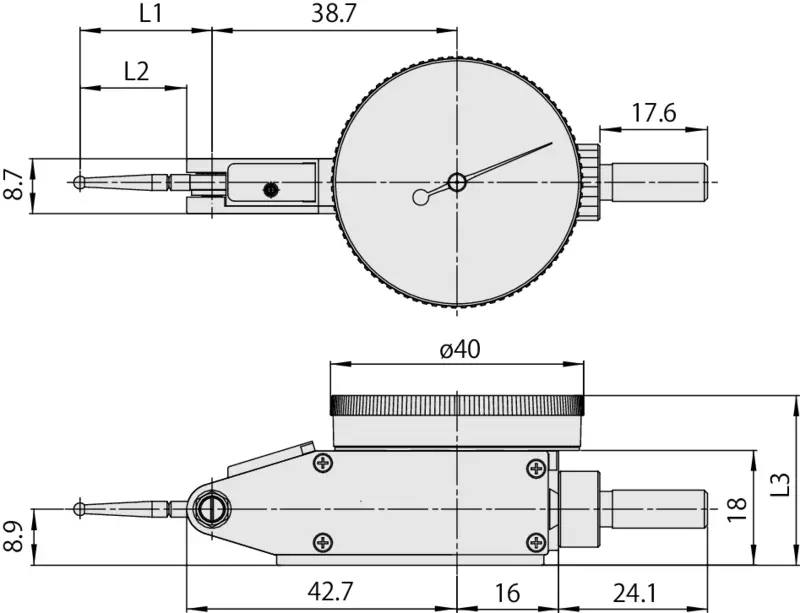

| L1: |
18.7 mm
|
| L2: |
15,2 mm
|
| L3: |
27 mm
|
Optional accessories:
 |
Limit Hands (Green) 2 pcs. |
| Dial Indicator Series 1, Test Indicator | |
| 21AAB363 | |
| For more : sales@inosaki.com |
Consumable spares:
 |
Stylus for Series 513 |
| D=2mm, 15,2mm Length, Carbide | |
| 103011 |
| Weight | 0.045 kg |
|---|
