Original price was: $ 82.80.$ 71.76Current price is: $ 71.76.
A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement. High resolution provided by a vernier scale on sleeve.
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
| Range: |
0-25 mm
|
| Graduation: |
0,001 mm
|
| Maximum Permissible Error J MPE: |
±2 µm
|
| Flatness: |
0,6 µm
|
| Parallelism: |
2 µm
|
| Measuring face: |
Carbide-tipped, micro-lap finish
|
| Mass: |
175 g
|
| Measuring spindle: |
With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø18 mm
|
| Measuring force: |
5 – 10 N
|
| Delivered: |
Including box, setting standard (from 25 mm upward), key, certificate of inspection (0-50 mm range)
|

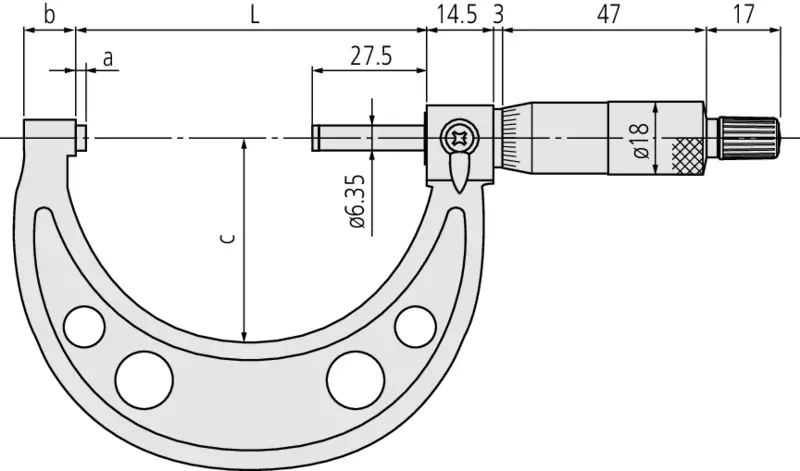

| L: |
30.3 mm
|
| a: |
2.8 mm
|
| b: |
9 mm
|
| c: |
28 mm
|
| d: |
6.35 mm
|
 |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |
 |
Outside Micrometer Economy Design |
| 25-50mm | 0-25mm, 0,001mm | 50-75mm | |||
| Mitutoyo Part Number: 103-138 | Mitutoyo Part Number: 103-129 | Mitutoyo Part Number: 103-139-10 | |||
| More Info | More Info | More Info | |||
 |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |
| 25-50mm, 0,001mm | 325-350mm | 675-700mm | |||
| Mitutoyo Part Number: 103-130 | Mitutoyo Part Number: 103-150 | Mitutoyo Part Number: 103-164 | |||
| More Info | For more : Contact us | For more : Contact us | |||
 |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |
| 0-25mm | 350-375mm | 700-725mm | |||
| Mitutoyo Part Number: 103-137 | Mitutoyo Part Number: 103-151 | Mitutoyo Part Number: 103-165 | |||
| For more : Contact us | For more : Contact us | For more : Contact us | |||
 |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |
| 400-425mm | 375-400mm | 725-750mm | |||
| Mitutoyo Part Number: 103-153 | Mitutoyo Part Number: 103-152 | Mitutoyo Part Number: 103-166 | |||
| For more : Contact us | For more : Contact us | For more : Contact us | |||
 |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |
| 75-100mm | 425-450mm | 750-775mm | |||
| Mitutoyo Part Number: 103-140-10 | Mitutoyo Part Number: 103-154 | Mitutoyo Part Number: 103-167 | |||
| For more : Contact us | For more : Contact us | For more : Contact us | |||
 |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |
| 100-125mm | 450-475mm | 775-800mm | |||
| Mitutoyo Part Number: 103-141-10 | Mitutoyo Part Number: 103-155 | Mitutoyo Part Number: 103-168 | |||
| For more : Contact us | For more : Contact us | ||||
 |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |
| 125-150mm | 475-500mm | 800-825mm | |||
| Mitutoyo Part Number: 103-142-10 | Mitutoyo Part Number: 103-156 | Mitutoyo Part Number: 103-169 | |||
| For more : Contact us | For more : Contact us | For more : Contact us | |||
 |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |
| 150-175mm | 500-525mm | 825-850mm | |||
| Mitutoyo Part Number: 103-143-10 | Mitutoyo Part Number: 103-157 | Mitutoyo Part Number: 103-170 | |||
| For more : Contact us | For more : Contact us | For more : Contact us | |||
 |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |
| 175-200mm | 525-550mm | 850-875mm | |||
| Mitutoyo Part Number: 103-144-10 | Mitutoyo Part Number: 103-158 | Mitutoyo Part Number: 103-171 | |||
| For more : Contact us | For more : Contact us | For more : Contact us | |||
 |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |
| 200-225mm | 550-575mm | 875-900mm | |||
| Mitutoyo Part Number: 103-145-10 | Mitutoyo Part Number: 103-159 | Mitutoyo Part Number: 103-172 | |||
| For more : Contact us | For more : Contact us | For more : Contact us | |||
 |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |
| 225-250mm | 575-600mm | 900-925mm | |||
| Mitutoyo Part Number: 103-146-10 | Mitutoyo Part Number: 103-160 | Mitutoyo Part Number: 103-173 | |||
| For more : Contact us | For more : Contact us | For more : Contact us | |||
 |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |
| 250-275mm | 600-625mm | 925-950mm | |||
| Mitutoyo Part Number: 103-147-10 | Mitutoyo Part Number: 103-161 | Mitutoyo Part Number: 103-174 | |||
| For more : Contact us | For more : Contact us | For more : Contact us | |||
 |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |
| 275-300mm | 625-650mm | 950-975mm | |||
| Mitutoyo Part Number: 103-148-10 | Mitutoyo Part Number: 103-162 | Mitutoyo Part Number: 103-175 | |||
| For more : Contact us | For more : Contact us | For more : Contact us | |||
 |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |  |
Outside Micrometer Economy Design |
| 300-325mm | 650-675mm | 975-1000mm | |||
| Mitutoyo Part Number: 103-149 | Mitutoyo Part Number: 103-163 | Mitutoyo Part Number: 103-176 | |||
| For more : Contact us | For more : Contact us | For more : Contact us |
Optional accessories:
 |
Micrometer Stand, 45° Angle Type |
| for Micrometer 0-50mm/0-2″ | |
| Mitutoyo Part Number: 156-105-10 | |
| For more : Contact us | |
 |
Micrometer Stand, Adjustable Angle Type |
| for Micrometer 0-100mm/0-4″ | |
| Mitutoyo Part Number: 156-101-10 | |
| More Info |
