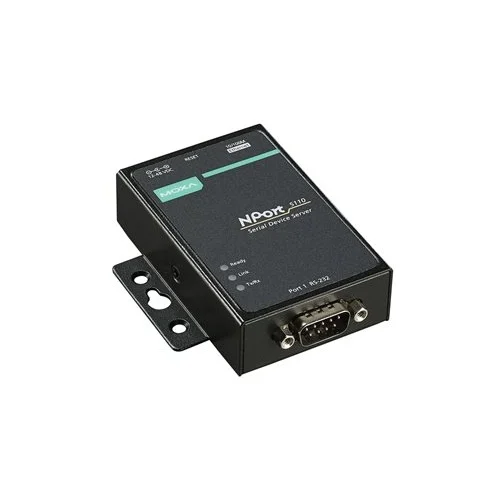

Moxa NPort 5110-T 1-Port Industrial Device Server

Technical Overview

Moxa NPort 5110-T is a 1-port RS-232 device server designed to make serial devices network-ready instantly. Its compact size makes it ideal for connecting devices such as card readers and payment terminals to an IP-based Ethernet LAN. It supports various operation modes like TCP Server, TCP Client, UDP Server/Client, Pair Connection, and Ethernet Modem, ensuring compatibility with standard network APIs. It also provides Real COM/TTY drivers for Windows, Linux, and macOS, allowing users to continue using existing software. The NPort 5110-T features a wide operating temperature range of -40 to 75°C, making it suitable for industrial environments.

Key Features

Small size for easy installation.
Real COM and TTY drivers for Windows, Linux, and macOS.
Standard TCP/IP interface and versatile operation modes (TCP Server, TCP Client, UDP Server/Client, Pair Connection, Ethernet Modem).
Easy-to-use Windows utility for configuring multiple device servers.
SNMP MIB-II support for network management and email alerts.
Configurable via Telnet, web browser, or Windows utility.
Wide operating temperature of -40 to 75°C.
1.5 kV magnetic isolation protection for Ethernet.
Metal housing for durability.
Supports DHCP Client, IPv4, SMTP, Telnet, DNS, HTTP, ARP, BOOTP, UDP, TCP/IP, ICMP.

Technical Specification Matrix

Parameter	Value
Connector	DB9 male (RS-232)
Number of Serial Ports	1
Serial Standards	RS-232
Baudrate	110 bps to 230.4 kbps
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
Housing Material	Metal
Installation Options	Desktop, DIN-rail mounting (with optional kit), Wall mounting
Operating Temperature	-40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Input Current	128.7 mA @ 12 VDC
Input Voltage	12 to 48 VDC
Number of Power Inputs	1
Source of Input Power	Power input jack
Ethernet Interface	10/100BaseT(X) Ports (RJ45 connector)
Magnetic Isolation Protection	1.5 kV (built-in)
Security Functions	Local database (password only)
Certifications	UL 60950-1

Industrial Applications

1. Remote Monitoring and Control of Industrial Sensors

Connecting legacy RS-232 based sensors or instruments in a factory automation setting, such as flow meters, pressure sensors, or temperature probes, to a central Ethernet-based control system. The NPort 5110-T enables data acquisition from these devices over the network.

Problem Solved

Legacy serial devices often lack direct Ethernet connectivity, making them difficult to integrate into modern IP-based control networks. The wide operating temperature range (-40 to 75°C) and robust metal housing ensure reliable operation in harsh industrial environments (e.g., non-climate-controlled factories, outdoor cabinets, heavy machinery areas) where standard office-grade equipment would fail. The 12-48 VDC input also suits industrial power supplies.

RS-232 to EthernetIndustrial AutomationSCADAPLC integrationRemote I/OData AcquisitionWide TemperatureLegacy Equipment

2. Network Integration for Outdoor Payment Terminals and Vending Machines

Providing network connectivity for RS-232 controlled payment terminals, barcode scanners, or telemetry modules in outdoor vending machines, kiosks, or smart lockers.

Problem Solved

Outdoor applications require devices that can withstand extreme temperatures (e.g., hot summers, cold winters). The -40 to 75°C operating temperature of the NPort 5110-T is perfect for these unattended, exposed locations. Its compact size allows for discreet installation within machine enclosures. The 12-48 VDC input is flexible for various power systems in these machines.

Payment SystemsPOSVending MachinesTelemetryOutdoor EnclosuresExtreme TemperatureSerial GatewayRemote Management

3. Integrating HVAC and Security Devices in Unconditioned Equipment Closets

Connecting RS-232-based HVAC controllers, access control systems, fire alarm panels, or power meters located in unconditioned building equipment rooms or utility closets to the building's main Ethernet network for centralized monitoring and management.

Problem Solved

Equipment rooms can experience significant temperature fluctuations. The -40 to 75°C operating temperature ensures the device server functions reliably without requiring additional climate control, reducing installation costs and energy consumption. The compact form factor and DIN-rail/wall mounting options are suitable for dense equipment racks or tight spaces.

BMSHVAC ControlAccess ControlFire Alarm SystemsEnergy ManagementData LoggingUnconditioned SpacesRS-232 Connectivity
