Optimize panel space with this 32-point mixed I/O module. Offers 16 inputs and 16 outputs with built-in short-circuit protection and 24VDC sourcing capability

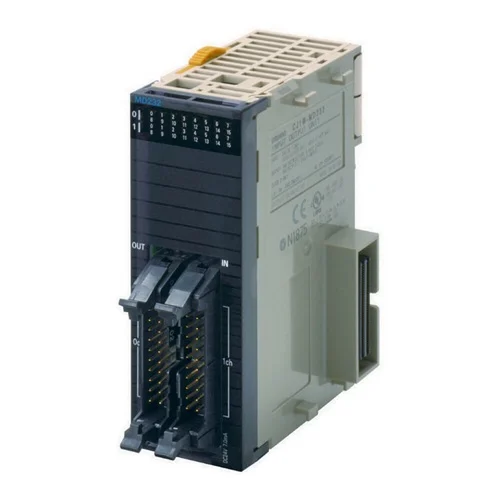

The Omron CJ1W-MD232 is a high-density, space-saving mixed I/O module for CJ-series programmable logic controllers. It features 16 digital inputs (24VDC) and 16 PNP transistor outputs (24VDC) in a compact 31mm wide housing, utilizing two MIL20 connectors. Designed for reliable industrial automation, the unit includes short-circuit protection on its 0.5A sourcing outputs and allows for configurable ON/OFF response times between 0 and 32ms.
| Parameter | Value |
|---|---|
| Number of Digital Inputs | 16 (24VDC, 7mA typ) [1.2] |
| Number of Digital Outputs | 16 (PNP Transistor, 24VDC, 0.5A/point, 2A/unit max) |
| Input Voltage Range | 20.4 to 26.4 VDC |
| Output Voltage Range | 10.2 to 26.4 VDC |
| Response Time (ON/OFF) | 0 to 32 ms (configurable) |
| Internal Current Consumption | 0.13A (at 5VDC) |
| Connection Type | 2 x MIL20 Connectors |
| Mounting | DIN rail |
| Degree of Protection | IP20 |
| Dimensions (H x W x D) | 90 mm x 31 mm x 83.6 mm |
| Weight | 100 g |
Used in high-speed packaging equipment to read sensor statuses and control pneumatic actuators through a single PLC module.
Space constraints in local control panels are solved by using a single mixed I/O module instead of separate input and output cards, significantly reducing the required DIN-rail footprint.
Interfaces with proximity sensors to detect part presence and directly triggers sorting diverter valves using 24VDC pneumatic solenoids.
Protects the factory control systems from electrical faults by utilizing built-in load short-circuit protection on the 0.5A PNP outputs, preventing cascade failures.
Serves as a digital handshake interface between an Omron CJ-series PLC and a robotic arm controller, efficiently passing interlock signals back and forth.
Consolidates 16 input interlocks and 16 output commands into a single 31mm-wide module, optimizing tight panel space and simplifying wiring architecture.
