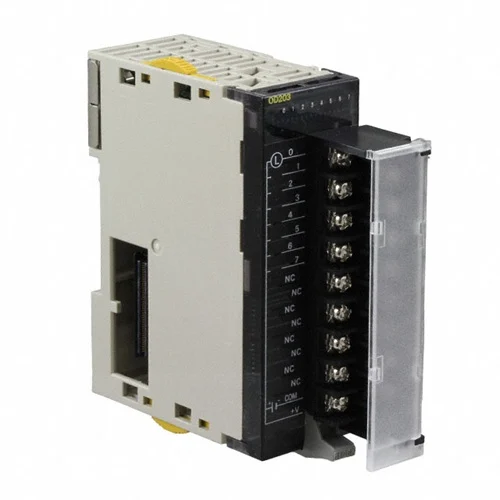

8-point triac PLC output module, 250 VAC 0.6 A per point, screw terminals, CJ I/O Bus expansion.
CJ-series basic I/O expansion output module with 8 triac outputs for PLC control of AC loads. Official OMRON specifications identify 250 VAC output capability at 0.6 A per point, 1 common, screw-terminal wiring, 16 allocated I/O bits, and compact DIN-rail module construction for CJ I/O Bus systems. The unit is intended for switching AC field devices such as relays, contactors, solenoids, pilot lamps, and other low-power AC actuators within Omron CJ controllers.
| Parameter | Value |
|---|---|
| I/O system | CJ I/O Bus |
| Expansion unit type | Basic I/O Unit |
| Module type | Digital I/O |
| Digital inputs | 0 |
| Digital output type | Triac |
| Digital outputs | 8 |
| Permitted output voltage | 170-264 V AC |
| Output current | 0.6 A |
| Number of commons | 1 |
| I/O connection type | Screw |
| Allocated I/O bits | 16 |
| Maximum switching capacity | 0.6 A, 250 V AC, 50/60 Hz (2.4 A/unit) |
| Max. inrush current | 15 A (pulse width: 10 ms) |
| Current consumption | 0.22 A |
| Dielectric strength | 2,000 VAC between external terminals and GR terminal for 1 minute at 10 mA max. |
| Product height (unpacked) | 90 mm |
| Product width (unpacked) | 31 mm |
| Product depth (unpacked) | 89 mm |
| Product weight (unpacked) | 140 g |
| UL note | CJ1W-OA201 is a UL-uncertified product; CJ1W-OA201-1 is UL-certified |
The 250 VAC, 0.6 A triac outputs are well matched to small AC indicators used on control cabinets and machine status stacks.
Provides direct PLC control of low-current AC signaling loads without intermediate interposing relays for each channel.
Eight AC triac channels can energize low-power coils used in auxiliary control circuits, allowing a compact output slice for discrete automation.
Reduces wiring complexity for small AC coil loads while maintaining multi-point output density.
The module is suited to adding eight AC outputs inside CJ-series systems where a compact basic I/O unit is needed at the rack level.
Expands controller output capacity in a small footprint with defined electrical isolation and terminal-based field wiring.
