8-point independent relay output module with 2 A switching, removable terminal block, 15 ms response, and CJ/NJ compatibility.

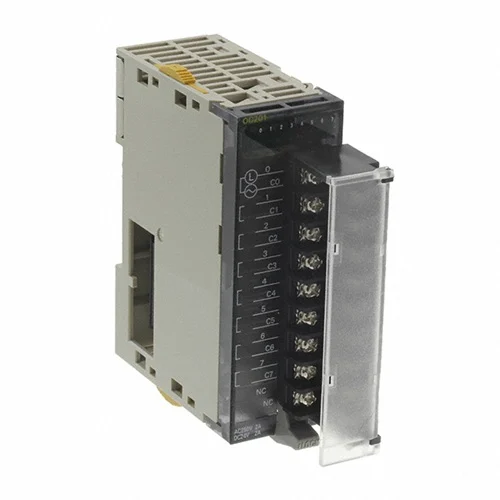

CJ-series 8-point contact output unit with independent relay outputs and removable terminal block. Official Omron specifications list 2 A maximum switching capacity at 250 VAC or 24 VDC, 1 mA minimum switching capacity at 5 VDC, 15 ms max ON/OFF response, 20 MΩ insulation resistance, 2,000 VAC dielectric strength, and 140 g max weight. It is intended for CJ/NJ controller systems and supports 8 independent contacts with a terminal-block wired interface.
| Parameter | Value |
|---|---|
| Output type | Contact output unit with independent relays |
| Number of outputs | 8 points |
| Number of circuits | 8 independent contacts |
| Max switching capacity | 2 A 250 VAC (cosφ = 1), 2 A 250 VAC (cosφ = 0.4), 2 A 24 VDC (16 A/Unit) |
| Min switching capacity | 1 mA 5 VDC |
| Relay type | NY-24W-K-IE (Fujitsu Takamizawa Components, Ltd.), cannot be replaced |
| ON response time | 15 ms max. |
| OFF response time | 15 ms max. |
| Insulation resistance | 20 MΩ between external terminals and GR terminal (500 VDC) |
| Dielectric strength | 2,000 VAC between external terminals and GR terminal for 1 minute at 10 mA max leakage current |
| Internal current consumption, 5 VDC | 90 mA max. |
| Internal current consumption, 24 VDC | 48 mA max. (6 mA × No. of ON points) |
| Weight | 140 g max. |
| External connection | Removable terminal block |
| I/O allocation | 16 I/O bits (1 word) allocated; 8 used for external I/O |
| Standards | UC1, N, L, CE |
Controls discrete machine enable, permissive, and alarm relay circuits where isolated contact outputs and 2 A switching are required.
Provides galvanically isolated relay outputs for directly switching control circuits and pilot loads without semiconductor leakage.
Drives contactor coils, solenoids, or stack-light circuits in conveyor automation where response time and contact isolation matter.
Reliable discrete actuation for field devices that need clean dry-contact switching rather than transistor outputs.
Implements hardwired alarm annunciation and permissive chains in process skids using relay contacts and removable terminal wiring.
Supports simple, maintainable hardwired logic for alarm lamps, horns, and safety permissives with documented insulation and dielectric ratings.
