USD 125.90

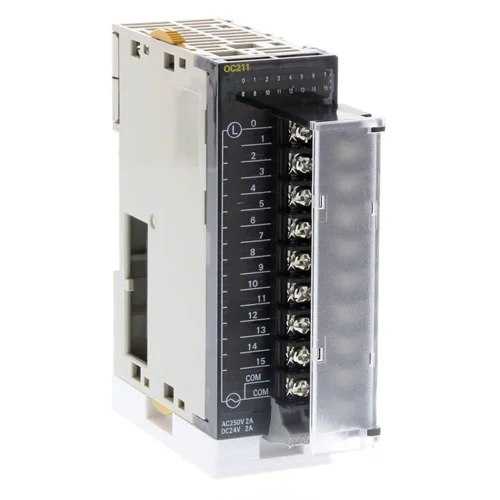

16-point relay output module for CJ I/O Bus; 5–250 V switching, 2 A per point, screw terminal connection.
CJ-series basic I/O relay output unit with 16 independent relay outputs for CJ I/O Bus systems. Official Omron documentation identifies it as a Basic I/O Unit with 16 outputs, relay NO output type, 5–250 V permitted output voltage, 2 A output current, and screw-terminal connection. The product is intended for PLC output switching where galvanic isolation and mixed AC/DC load compatibility are required.
| Parameter | Value |
|---|---|
| I/O system | CJ I/O Bus |
| Expansion unit type | Basic I/O Unit |
| Module type | Digital I/O |
| Digital inputs | 0 |
| Digital outputs | 16 |
| Output type | Relay NO |
| Permitted output voltage | 5–250 V |
| Output current | 2 A |
| I/O connection type | Screw |
| Number of I/O connectors | 1 |
| COM terminals | 2 |
| Product height (unpacked) | 90 mm |
| Product width (unpacked) | 31 mm |
| Product depth (unpacked) | 89 mm |
| Product weight (unpacked) | 118 g |
| Current consumption at 5 V | 0.11 A |
| Current consumption at 24 V | 0.096 A max. |
Use the 16 relay outputs to switch AC or DC loads from a CJ PLC where the field devices require 5–250 V compatibility and up to 2 A per channel.
Eliminates the need for separate interposing relays in moderate-load control circuits.
The module fits control cabinets that need many discrete on/off points with simple screw-terminal wiring and relay contact isolation.
Provides dense discrete output expansion with straightforward wiring and isolated contacts.
A compact 16-point output unit can extend existing CJ I/O Bus systems in legacy equipment without changing the base PLC architecture.
Adds output capacity to installed CJ controllers while preserving the existing system bus and wiring style.
