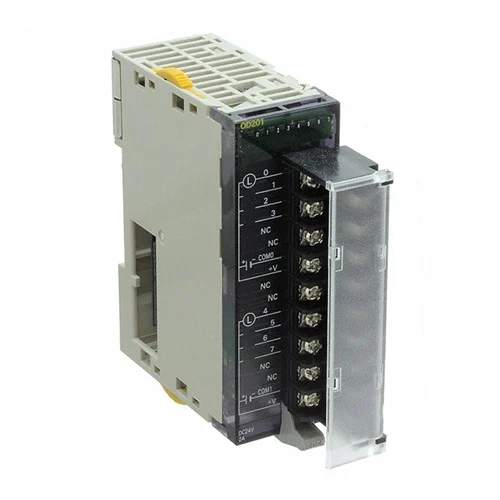

8-point sinking transistor output unit, 12–24 VDC loads, 2.0 A/point, 8.0 A/unit, removable terminal block.
8-point sinking transistor output unit, 12–24 VDC loads, 2.0 A/point, 8.0 A/unit, removable terminal block.
| Parameter | Value |
|---|---|
| Model | CJ1W-OD201 |
| Output type | Transistor output unit, sinking |
| Number of outputs | 8 outputs |
| Rated voltage | 12 to 24 VDC |
| Operating load voltage range | 10.2 to 26.4 VDC |
| Maximum load current | 2.0 A/point, 8.0 A/unit |
| Maximum inrush current | 10 A/point, 10 ms max. |
| Leakage current | 0.1 mA max. |
| Residual voltage | 1.5 V max. |
| ON response time | 0.5 ms max. |
| OFF response time | 1.0 ms max. |
| Insulation resistance | 20 MΩ between the external terminals and the GR terminal (100 VDC) |
| Dielectric strength | 1,000 VAC between the external terminals and the GR terminal for 1 minute at 10 mA max. leakage current |
| Number of circuits | 8 (4 points/common, 2 circuits) |
| Internal current consumption | 90 mA max. |
| Fuse | 6.3 A (1/common, 2 used); not user-replaceable |
| External power supply | 10.2 to 26.4 VDC, 10 mA min. |
| Weight | 110 g max. |
| Physical Weight (kg) | 0.11 |
| Dimensions L x W x H (cm) | 0 x 0 x 0 |
The 0.5 ms ON time and 2.0 A per-point sinking output suit rapid actuation of 24 VDC solenoid valves in compact pneumatic manifolds.
Provides fast, stable switching for valve coils without relay wear or slow response.
The 8-channel output density and removable terminal block support machine sections that drive indicator lamps, buzzers, and low-power DC actuators from a CJ-series PLC.
Consolidates multiple discrete DC loads into one compact PLC output module.
The low internal current consumption and two-circuit commoning make the module practical for adding output capacity in space-limited control panels with 24 VDC field devices.
Expands PLC output count while keeping panel wiring compact and load wiring organized.
