8-point PNP transistor output module, 24 VDC, 2 A per point, screw-terminal CJ I/O Bus unit for CJ-series PLCs.

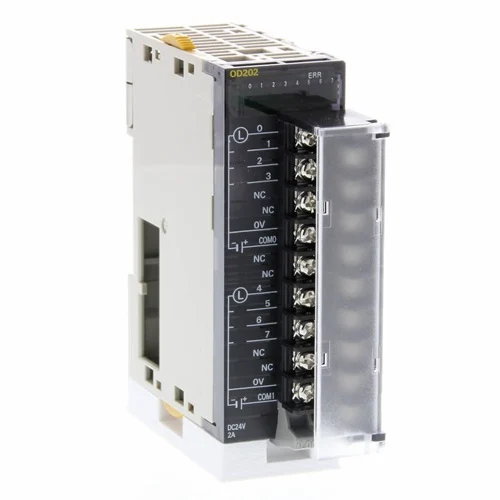

CJ1W-OD202 is a CJ I/O Bus basic digital output unit for Omron CJ-series PLCs. It provides 8 PNP transistor outputs rated for 24 VDC systems, with 2 A output current and screw-terminal wiring. Manufacturer documentation lists it as an 8-point sourcing output module for industrial control panels and machine automation applications.
| Parameter | Value |
|---|---|
| I/O system | CJ I/O Bus |
| Expansion unit type | Basic I/O Unit |
| Type of module | Digital I/O |
| Number of digital inputs | 0 |
| Digital input type | None |
| OFF/ON delay | 0.5-1 ms |
| Number of digital outputs | 8 |
| Digital output type | PNP |
| Permitted voltage at output | 20.4-26.4 V |
| Output current | 2 A |
| I/O connection type | Screw |
| Number of I/O connectors | 1 |
| Number of IOV (V+) terminals | 2 |
| Number of IOG (V-) terminals | 2 |
| Number of COM terminals | 0 |
| Product Height (unpacked) | 90 mm |
| Product Width (unpacked) | 31 mm |
| Product Depth (unpacked) | 89 mm |
| Product Weight (unpacked) | 108 g |
Ideal for compact OEM machines that need eight 24 VDC sourcing outputs to drive solenoids, relays, or indicator loads from a CJ-series PLC rack.
Eliminates the need for a separate relay interface when only low-voltage DC output channels are required.
Suitable for conveyor zones, diverters, and indexing mechanisms where multiple discrete DC actuators must be switched quickly from one PLC expansion module.
Provides enough channels and fast 0.5-1 ms delay for coordinated discrete automation sequences.
Works well for control panels that need multiple 24 VDC pilot lamps, buzzers, and small control relays driven directly from a PLC output card.
Consolidates low-power field signaling into a single compact output module with screw-term wiring.
